Stickers Key Attributes
Goods Name
Thermal Transfer Strong Stick Polyester Label Material
Surface Substrate
Gram Weight
ISO536 67±3 g/m2
Longitudinal Tensile Strength
≥110 N/2.5CM
Transverse Tensile Strength
≥160 N/2.5CM
Surface Treatment
20 um Nano Transfer Coating
Stickers Adhesive
Dry Coating Weight(g/m²)
ISO536 22±5 gsm
Release Paper
Material Name
Press Finish White Glasin
Release Force(g/in)
FTM3 10-20g
Gram Weight
ISO536 78±3 g/m2
Physical Test Data
Initial Tack
ASTM D3759 ≥3# ,Steel Ball#
Holding Power
FTM8 ＞24h Hour
24 hours 90° Peel viscosity -FTM 2(st,st) :
9.0
20 min 90° Peel viscosity -FTM 2(st,st) :
9.0
180°Peeling Force On Steel Plate
FTM1 ≥8 N/25mm
180°Release Force
FTM3 ≤8 g/25mm
Shelf Life
It can be stored for one year at a temperature of 23±2 C and relative humidity of 50±5%.
Maximum Sticking Temperature
+40℃
Minimum Sticking Temperature
-10℃
Application Temperature
-10 ～+ 80℃
Package Size
Dimensions Standard Width
Valid Width：1070mm，Slitting Minimum Width：25mm
Dimensions Standard Length
400M 800M 1000M 2000M
Core Size
Diameter 75mm* Width 1070mm
About Stickers Goods Packing
Storage Temperature
-10℃-40℃
Storage
Keep indoor,airiness,avoiding high humidity and direct sunlight,can keep one year in room temperature & humidity.
Logistics
Use wrapping film, corrugated paper to wrap the product, and then use packing rope to secure the card.
Express
Use wrap film and foam wrap, then use corrugated paper to wrap the edge products.
Other Attributes
Longitudinal Tensile Strength
≥80 N/2.5CM
Transverse Tensile Strength
≥150 N/2.5CM
Product Details

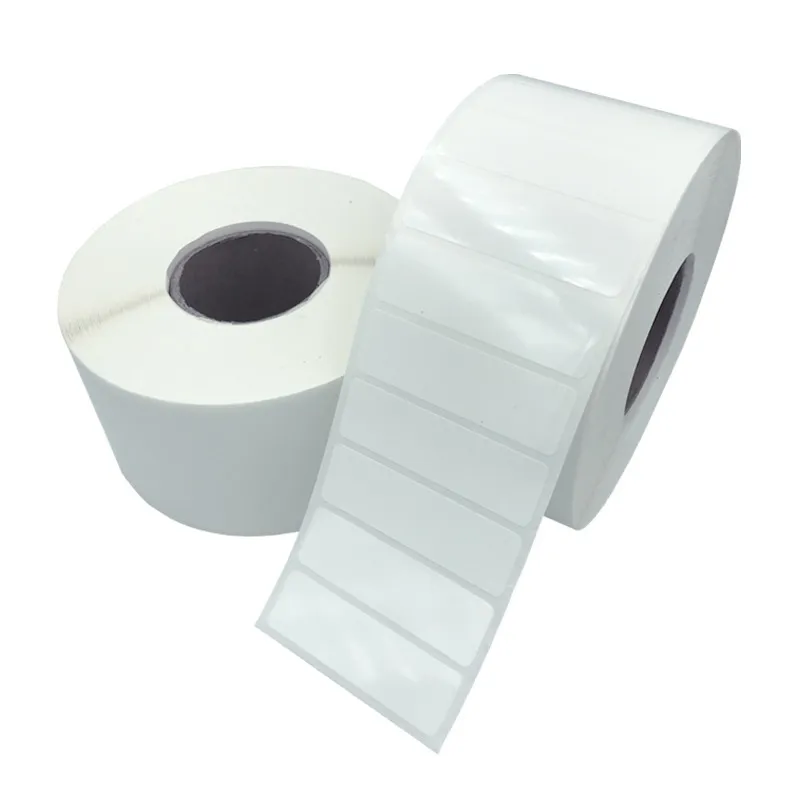

Thermal transfer strong stick polyester labels - durable and precisely adhered
Product Overview
Thermal transfer strong stick polyester label is a high-performance label solution specially designed for harsh industrial environments and high-demand application scenarios. Made of high-quality PET (polyester) material, combined with high-strength adhesives and heat transfer printing technology, the label ensures excellent durability and clear readability under complex conditions such as extreme temperatures, chemical corrosion, moisture, and friction. It is an ideal choice for industrial identification, logistics tracking, electronic components, medical devices, and other fields.
Core advantage
- Outstanding material performance
Strong weather resistance: PET substrate has excellent tear resistance, high-temperature resistance (-40℃ to +150℃), moisture resistance, UV resistance and chemical solvent resistance, making it suitable for long-term use both indoors and outdoors.
Smooth surface: High-gloss or matte surface treatment, compatible with thermal transfer printing, ensuring clear and sharp printing of text, barcodes and patterns, without smudging or peeling.
- Super adhesive technology
Strong initial adhesion and long-lasting bonding: Utilizing special acrylic or rubber-based adhesives, it instantly adheres to various surfaces (including curved surfaces, rough surfaces, and low surface energy materials such as PE and PP), ensuring no edge lifting or peeling over long-term use.
Environmental adaptability: Passed the tests of high and low temperatures, water wash resistance, and oil stain resistance, meeting the strict certification requirements of food grade, medical devices, etc. (Optional adhesives that comply with FDA or RoHS standards are available).
- Thermal transfer compatibility
It is compatible with wax-based, mixed-based and resin-based carbon ribbons. The printing effect is fine, wear-resistant and has excellent scratch resistance, ensuring a one-time recognition rate of over 99.9% for barcode scanning.
- Flexible customized services
Supports customization in various sizes, shapes and thicknesses (commonly 25μm-100μm), and can pre-print enterprise logos, warning signs or color zones to meet the needs of diverse scenarios.
Typical application scenarios
- Industrial manufacturing: Equipment nameplates, pipeline identification, electronic component traceability labels.
- Logistics and warehousing: freight pallet labels, outdoor container identification, cold chain logistics tracking.
- Medical and health care: Sterilization labels for medical devices, laboratory sample management, and drug packaging labeling.
- Retail and food: Anti-counterfeiting labels for high-end products, packaging for low-temperature frozen foods, and durability instructions for daily chemical products.
Technical parameters
- Substrate thickness: 25μm / 50μm / 75μm / 100μm (optional)
- Adhesive type: Permanent Strong Adhesion (Optional removable type)
- Applicable printing technology: Thermal transfer printer (resin-based ribbons are recommended)
- Temperature resistance range: -40℃ to +150℃ (short-term tolerance: +180℃)
- Certification standards: RoHS, REACH, and some models comply with FDA 21 CFR 175.105
Why choose our products?
Quality Assurance: The entire process is dust-free production and has passed the ISO 9001 quality management system certification to ensure batch consistency.
Quick response: We offer sample making, technical consultation and after-sales support, and deliver samples within 48 hours.
Environmentally friendly and sustainable: Some models support recyclable PET materials, facilitating the green transformation of enterprises.
Product FAQ
It is necessary to understand the specific industry and application, environmental conditions, service life, adhesion surface and other requirements, in order to meet the performance requirements such as temperature resistance, moisture resistance, cold and heat cycle resistance, chemical reagent wiping/soaking resistance, wear resistance, UV aging resistance, salt spray test, and adhesion
Rubber vulcanization label is a special label specially designed for use in the high-temperature and high-pressure vulcanization process of rubber products. It can withstand the extreme environment of the vulcanization process and firmly adhere to rubber products after vulcanization, providing necessary identification information.
Heat treatment labels are made of high-temperature resistant materials (such as metals and ceramics) and use special permanent marking methods (such as engraving, etching, and high-temperature ink). After enduring the harsh high-temperature environment of heat treatment, it can still clearly and reliably identify and track the information of parts or batches, ensuring the traceability of the production process and quality control.
Anti-static stickers are functional stickers that suppress the generation and accumulation of static electricity through special surface treatment (anti-static coating). In application scenarios such as electronic manufacturing, logistics, and medical care that are sensitive to static electricity or pose static electricity risks, protect products, ensure operational safety, and maintain environmental cleanliness.
Outdoor weatherproof stickers are special label stickers designed for use in outdoor environments. They can maintain their appearance, integrity and secure adhesion for a long time in harsh outdoor conditions.
Low energy surface label sticker are suitable for applications where there are high requirements for cleanliness, durability, chemical resistance, or where they need to be adhered to substrates with low surface energy such as PTFE, silicone rubber, HDPE, and PP, which are difficult to bond.
If you have any questions about our head Stickers material products, please feel free to contact us.
