Microprism Reflective Film Tape Material

Microprism Reflective Film Tape Material

Microprism reflective film tape is a high-performance, self-adhesive reflective material manufactured based on microprism retroreflective technology. It utilizes precise optical design and advanced manufacturing techniques to regularly arrange millions of tiny three-sided right-angle prisms (microprisms) on a transparent film substrate. The surface is covered with a protective layer, and the back is coated with strong adhesive pressure-sensitive adhesive and equipped with release paper. This structure enables it to reflect the light that reaches its surface back to the light source direction with extremely high efficiency at night or in low-light environments, thereby creating an exceptionally bright and eye-catching visual effect, significantly enhancing the visibility and warning function of the target object.

Product Review:
5.0 out of 5.0 based on 1 review

Stickers Key Attributes

Goods Name
Microprism Reflective Film Tape Material

Surface Substrate

Material Name
Polyvinyl
Color
Red / White,Red / White
Thickness
ISO534 100±3 μm
Gram Weight
ISO536 120±3 g/m2
Longitudinal Tensile Strength
≥40 N/2.5CM
Transverse Tensile Strength
≥50 N/2.5CM
Surface Treatment
20 um Nano Transfer Coating

Stickers Adhesive

Adhesive Type
Acrylic
Dry Coating Weight(g/m²)
ISO536 21±5 gsm
Thickness
ISO534 19±5 μm

Release Paper

Material Name
High Quality White Release Paper
Release Force(g/in)
FTM3 10-20g
Color
White
Gram Weight
ISO536 138±3 g/m2
Thickness
ISO534 135±5 μm

Physical Test Data

Initial Tack
ASTM D3759 ≥6 N/6.25cm2
Holding Power
FTM8 >4 24h Hour
180°Release Force
FTM3 ≤7 g/25mm
Shelf Life
It can be stored for one year at a temperature of 23±2 C and relative humidity of 50±5%.
Maximum Sticking Temperature
+40℃
Minimum Sticking Temperature
+10℃
Application Temperature
-10 ~+ 60℃

Package Size

Dimensions Standard Width
Valid Width:1070mm,Slitting Minimum Width:25mm
Dimensions Standard Length
400M 800M 1000M 2000M
Core Size
Diameter 75mm* Width 1070mm
Joint
2000M ≤1

About Stickers Goods Packing

Storage Temperature
-10℃-40℃
Storage
Keep indoor,airiness,avoiding high humidity and direct sunlight,can keep one year in room temperature & humidity.
Logistics
Use wrapping film, corrugated paper to wrap the product, and then use packing rope to secure the card.
Express
Use wrap film and foam wrap, then use corrugated paper to wrap the edge products.

Other Attributes

Longitudinal Tensile Strength
≥55 N/2.5CM
Transverse Tensile Strength
≥130 N/2.5CM

Product Details

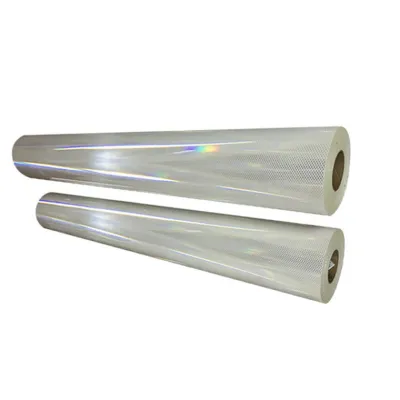

Product Introduction: High-performance Microprism reflective film tape
Product Overview
Microprism reflective film tape is a high-performance, self-adhesive reflective material manufactured based on microprism retroreflective technology. It utilizes precise optical design and advanced manufacturing techniques to regularly arrange millions of tiny three-sided right-angle prisms (microprisms) on a transparent film substrate. The surface is covered with a protective layer, and the back is coated with strong adhesive pressure-sensitive adhesive and equipped with release paper. This structure enables it to reflect the light that reaches its surface back to the light source direction with extremely high efficiency at night or in low-light environments, thereby creating an exceptionally bright and eye-catching visual effect, significantly enhancing the visibility and warning function of the target object.

Core technologies and significant advantages

  • Outstanding reflective brightness

By adopting microprism technology, its optical efficiency far exceeds that of traditional glass microbead-type reflective films.

It can achieve a retroreflectivity coefficient (RA value), especially under long-distance and wide-angle observation conditions, with particularly outstanding brightness performance, and is a representative of the highest grade of reflective materials.

It offers diamond-level retroreflective performance to ensure clear identification even at extremely long distances.

  • Outstanding wide-angle performance

The microprism structure design enables it to maintain excellent reflective performance even at large incident angles (light irradiation angles) and large observation angles (human eye observation angles), making it suitable for more complex observation conditions (such as highway curves and side observations).

  • Outstanding weather resistance and durability

It is made of high-quality engineering-grade films (such as PET, PC) and weather-resistant resin coatings, featuring excellent UV resistance, oxidation resistance, resistance to high and low temperatures (-40°C to +90°C or even higher), moisture resistance and salt spray resistance.

It can be used for a long time in harsh outdoor environments without fading, becoming brittle, cracking or peeling off, and has a long service life (usually up to 7-10 years or even longer).

  • Strong bonding performance

The back adhesive is made of high-performance pressure-sensitive adhesives (such as acrylic adhesives), featuring strong initial adhesion, long-lasting holding power and excellent cohesion.

It can firmly adhere to the surfaces of various clean and dry substrates, such as metal (vehicle bodies, guardrails), plastic (traffic cones, sign base plates), glass, composite materials, etc.

It has good solvent resistance and resistance to plasticizer migration.

  • Convenient construction and maintenance

It comes with self-adhesive backing and can be used immediately after application without the need for additional tools or heating equipment (different from hot-melt reflective films). The construction is simple, fast and highly efficient.

It has good flexibility and can fit curved surfaces of a certain curvature.

Easy to clean and maintain, stains can be wiped with neutral detergent.

Reflective Film Tape Material

Main application fields

  • Road traffic safety

Traffic signs on high-grade highways and urban roads (especially those requiring high brightness and long-distance identification, such as direction signs, prohibition signs and warning signs).

Road contour markers, raised road signs (cat's eye), road studs, and reflective strips for isolation guardrails.

Reflective markings on warning signs, cones and anti-collision barrels in temporary construction areas.

Reflective markings on vehicle bodies (for large trucks, trailers, hazardous chemicals vehicles, engineering vehicles, etc., in compliance with standards such as GB 23254).

  • Personal Protection and occupational safety

Reflective strips on high-visibility warning clothing (reflective vests, work clothes) (must comply with standards such as EN ISO 20471, ANSI/ISEA 107, etc.).

  • Reflective markings on safety helmets.

High-brightness reflective bands on rescue equipment and fire suits.

  • Industrial equipment and asset identification

Safety warning strips and signs for mobile equipment such as construction machinery, forklifts, and AGV carts.

Safety signs and contour markings for warehouse shelves, columns, fire protection facilities, pipelines, etc.

Reflective numbers and warning strips on large equipment, toolboxes and containers.

  • Outdoor Advertising and Creative Design

Billboards and shop sign elements that require high visibility at night.

  • Creative exhibitions, safety-themed art installations, etc.

Product specifications and options (customizable according to customer requirements)

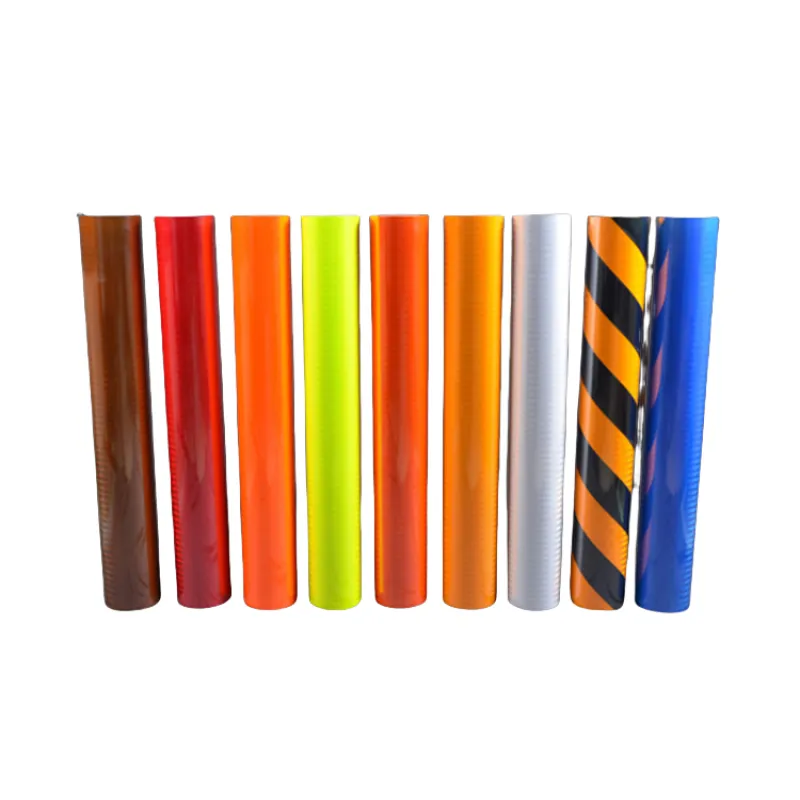

Colors: Common ones include white, yellow, red, orange, green, blue, etc., meeting different warning and marking requirements.

Width: Multiple standard widths are provided (such as 25mm, 50mm, 75mm, 100mm, 150mm, etc.), and special widths can also be slitted.

Length: Usually provided in roll form (such as 10 meters, 25 meters, 50 meters per roll).

Base material thickness: Multiple thicknesses are available to balance flexibility and durability.

Adhesive types: standard adhesive, high-temperature resistant adhesive, super adhesive, removable adhesive, etc.

Surface treatment: Glossy finish, matte finish, anti-graffiti coating, etc.

Certification: It can comply with relevant national/international standards (such as China GB/T 18833, EU EN 12899-1, US ASTM D4956, etc.).

Why choose our microprism reflective film tape?
Top-notch optical performance: Offers industry-leading retroreflective brightness to ensure optimal visibility.

Durable and reliable: Utilizing high-quality materials and craftsmanship, it is long-lasting and reduces long-term maintenance costs.

Widely applicable: Adaptable to various substrates and application scenarios, providing flexible solutions.

Convenient and efficient: Ready to use upon application, significantly enhancing construction efficiency.

Safety Assurance: Significantly enhance the safety of people, vehicles and objects in low-light environments to prevent accidents.

Professional support: We offer technical consultation, customized services and reliable supply guarantees.

Product FAQ

Yes, the coating provides strong resistance against chemicals, solvents, and oils, making it suitable for harsh industrial environments.
Improper surface cleaning or insufficient pressure during application can cause lifting. Ensure the surface is dry, oil-free, and firmly pressed before heating.
Curling often happens under prolonged exposure to extreme heat. Selecting a thicker version or applying additional pressure can reduce edge lifting.
Yes, but improper stretching may cause lifting. Use narrower widths or segmented applications for better adhesion on complex shapes.
Yes, Paint Coated High Temperature Tape Material is designed to be peeled off smoothly after high-temperature exposure, leaving no adhesive residue on the surface.
The tape is coated with heat-resistant paint and silicone adhesive, allowing it to maintain adhesion and integrity even under high curing temperatures in powder coating ovens.

If you have any questions about our head Stickers material products, please feel free to contact us.
