Stickers Key Attributes
Goods Name

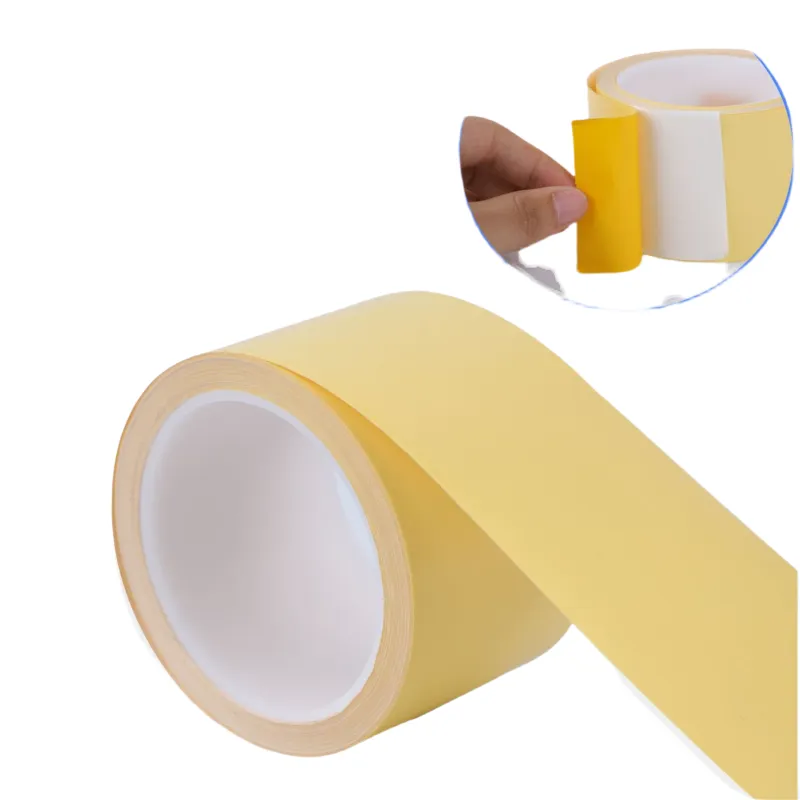

Yellow Polyimide High Temperature Sticker Label Material
Surface Substrate
Gram Weight
ISO536 67±3 g/m2
Surface Treatment
20 um Nano Transfer Coating
Stickers Adhesive
Dry Coating Weight(g/m²)
ISO536 50±5 gsm
Release Paper
Material Name
Press Finish White Glasin
Gram Weight
ISO536 80±3 g/m2
Physical Test Data
180°Release Force
FTM3 ≤150 g/25mm
180°Peeling Force On Steel Plate
FTM1 ≥5 N/25mm
20 min 90° Peel Viscosity
FTM 2 6 N/25mm
24 hours 90° Peel viscosity
FTM 2 8 N/25m
Application Temperature
-40 ～+ 300℃
Minimum sticking Temperature
10℃
Maximum Sticking Temperature
+40℃
Release Force(g/in)
FTM3 20-30g
Initial Tack
ASTM D3759 ≥3# ,Steel Ball#
Holding Power
FTM8 ＞24h Hour
Shelf Life
It can be stored for one year at a temperature of 23±2℃ and relative humidity of 50±5%
Package Size
Dimensions Standard Width
Valid Width：1070mm，Slitting Minimum Width：25mm
Dimensions Standard Length
500M 1000M
Core Size
Diameter 75mm* Width 1070mm
About Stickers Goods Packing
Logistics
Use wrapping film, corrugated paper to wrap the product, and then use packing rope to secure the card.
Express
Use wrap film and foam wrap, then use corrugated paper to wrap the edge products.
Storage
Keep indoor,airiness,avoiding high humidity and direct sunlight,can keep one year in room temperature & humidity.
Other Attributes
Initial Viscosity (st,st):
FTM 9 8 N/25mm
Short-time High temperature Resistance
At 300 ºC (572 ºF) for 90 seconds
Product Details
Product Overview
Yellow Polyimide thermal transfer high temperature label material is a high-performance identification solution specially designed for extreme environments. It is made of high-quality polyimide film substrate and high-temperature resistant adhesive, combined with thermal transfer printing technology, which can generate long-lasting and clear marks. It is suitable for harsh scenarios such as high temperature, chemical corrosion and mechanical wear. Its unique grey surface combines professional texture with high-contrast printing effect, making it an ideal choice for the fields of electronic components, aerospace, automotive manufacturing and industrial equipment.
 |
 |
 |
| Gloss white high temperature sticker material |
Matte white high temperature label material |
Matte black high temperature label material |
 |
 |
 |
| Grey high temperature sticker label material |
Pink high temperature sticker label material |
Yellow high temperature sticker label material |
 |
 |
 |
| Blue high temperature sticker label material |
Green Polyimide high temperature label material |
Grey high temperature label sticker material |
 |
|
|
| Flame retardant Polyimide high temperature label |
Polyimide Anti-static high temperature label |
Polyimide Transferable high temperature label |
Core advantage
- Outstanding high-temperature resistance
Long-term temperature tolerance range: -269°C to +260°C (up to 300°C for short periods), suitable for high-temperature processes such as reflow soldering and wave soldering.
There is no warping or cracking, ensuring that the label remains intact and readable during the thermal cycle.
- High strength and durability
Polyimide substrates have excellent tear and tensile resistance, and can withstand mechanical friction and chemical solvents (such as alcohol, acetone, grease, etc.).
Anti-static design to prevent precision electronic components from being damaged by dust attraction due to static electricity.
- High-precision printing compatibility
Optimized for thermal transfer printing, when paired with resin-based carbon ribbons (recommended), it can present sharp text, barcodes and patterns, and is scratch-resistant without fading.
The grey matte surface offers high contrast, ensuring that scanning devices can identify quickly and accurately.
High-performance silicone or acrylic adhesives are available for selection, suitable for different material surfaces (metal, plastic, ceramic, etc.).
It has passed UL/CSA certification and complies with RoHS and REACH environmental protection standards.
Typical application scenarios
- Electronics industry: High-temperature process tracking labels for PCB boards, flexible circuit boards (FPC), electronic components, and power modules.
- Automobile manufacturing: Engine compartment wiring harness marking, oil-resistant sensor labels, permanent marking for on-board electronic devices.
- Aerospace: Component tracking labels and equipment maintenance record identifiers resistant to extreme temperatures and radiation.
- Medical equipment: Labels for devices that can withstand autoclaving and chemical disinfection, meeting medical-grade durability standards.
- Industrial manufacturing: Nameplates for high-temperature equipment, labels for chemical containers, traceability for automated production lines.
Technical parameters
- Attribute specification value
- Substrate thickness: 25μm / 50μm / 75μm (optional)
- Surface treatment: matte/glossy coating
- Adhesive type: High-temperature resistant silicone pressure-sensitive adhesive
- Peel strength (for stainless steel) ≥8 N/25mm
- Shelf life: 24 months (Store in the original packaging away from light)
Optional specifications and services
- Customized services: Support processing requirements such as pre-die-cutting of labels, slitting of rolls, and back printing of serial numbers.
- Recommended compatible carbon ribbons: Resin-based carbon ribbons (such as Wax-Resin or all-resin carbon ribbons) to ensure the best printing durability.
Packaging and Storage
- Standard packaging: Roll material (maximum outer diameter 300mm, core diameter 76mm), wrapped with anti-static film.
- Storage conditions: It is recommended to store in a cool and dry place (temperature 15-30°C, humidity 40-60%).
Quality Assurance
It has passed the ISO 9001 quality management system certification and provides batch traceability and third-party test reports (such as SGS).
Product FAQ
It is necessary to understand the specific industry and application, environmental conditions, service life, adhesion surface and other requirements, in order to meet the performance requirements such as temperature resistance, moisture resistance, cold and heat cycle resistance, chemical reagent wiping/soaking resistance, wear resistance, UV aging resistance, salt spray test, and adhesion
Rubber vulcanization label is a special label specially designed for use in the high-temperature and high-pressure vulcanization process of rubber products. It can withstand the extreme environment of the vulcanization process and firmly adhere to rubber products after vulcanization, providing necessary identification information.
Heat treatment labels are made of high-temperature resistant materials (such as metals and ceramics) and use special permanent marking methods (such as engraving, etching, and high-temperature ink). After enduring the harsh high-temperature environment of heat treatment, it can still clearly and reliably identify and track the information of parts or batches, ensuring the traceability of the production process and quality control.
Anti-static stickers are functional stickers that suppress the generation and accumulation of static electricity through special surface treatment (anti-static coating). In application scenarios such as electronic manufacturing, logistics, and medical care that are sensitive to static electricity or pose static electricity risks, protect products, ensure operational safety, and maintain environmental cleanliness.
Outdoor weatherproof stickers are special label stickers designed for use in outdoor environments. They can maintain their appearance, integrity and secure adhesion for a long time in harsh outdoor conditions.
Low energy surface label sticker are suitable for applications where there are high requirements for cleanliness, durability, chemical resistance, or where they need to be adhered to substrates with low surface energy such as PTFE, silicone rubber, HDPE, and PP, which are difficult to bond.
If you have any questions about our head Stickers material products, please feel free to contact us.
