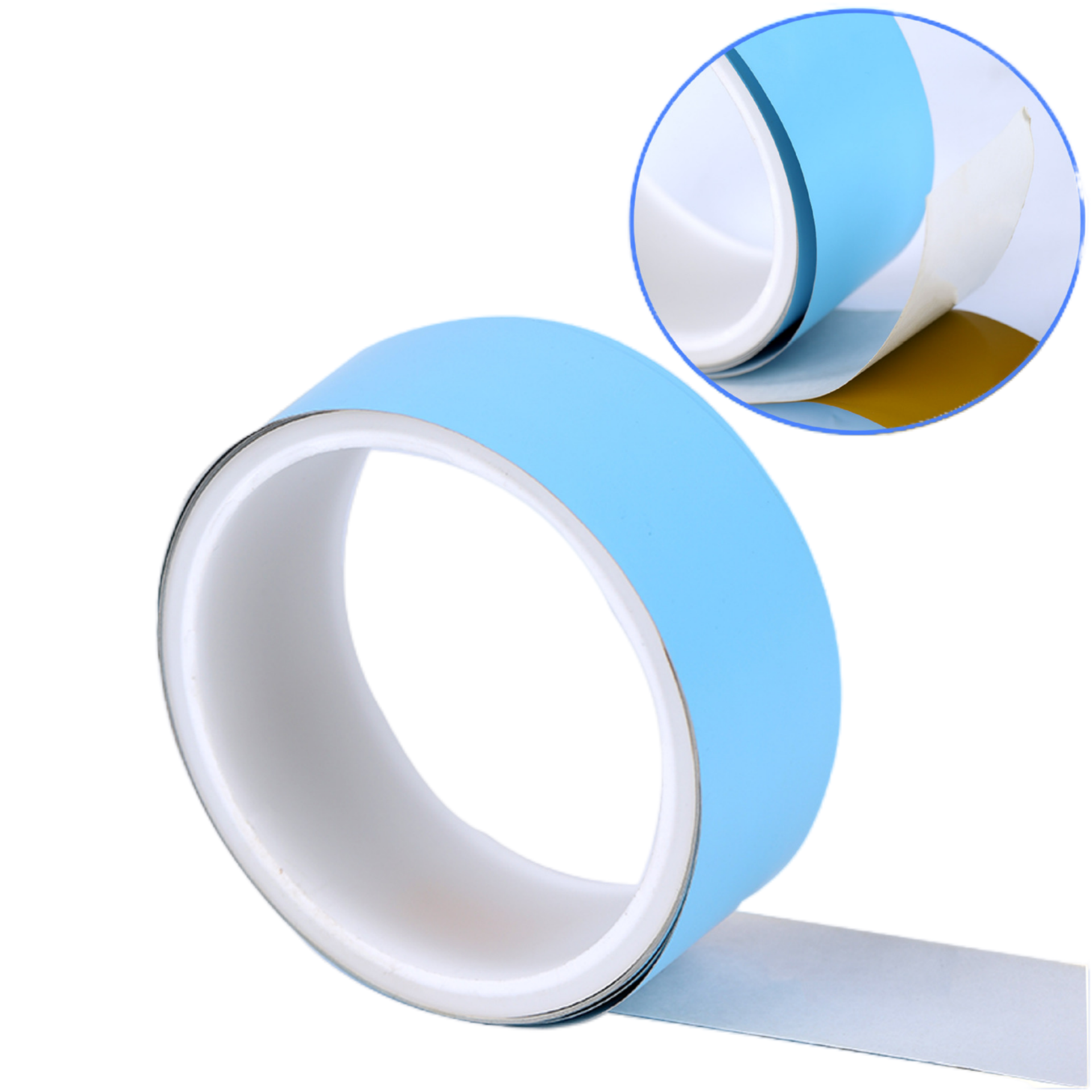

Light Blue Polyimide High Temperature Label Sticker Material

Stickers Key Attributes

Surface Substrate

Stickers Adhesive

Release Paper

Physical Test Data

Package Size

About Stickers Goods Packing

Other Attributes

Product Details

Product Overview

The blue polyimide heat transfer high-temperature resistant label material is a high-performance identification solution specially designed for extreme environments. Its core base material is made of high-quality polyimide film, with a blue high-temperature resistant coating on the surface. Combined with advanced heat transfer printing compatibility, it can withstand harsh conditions such as high temperatures, chemical corrosion, and mechanical wear, and is widely used in fields such as electronics, automobiles, aerospace, and industrial manufacturing, providing a durable and clear identification effect.

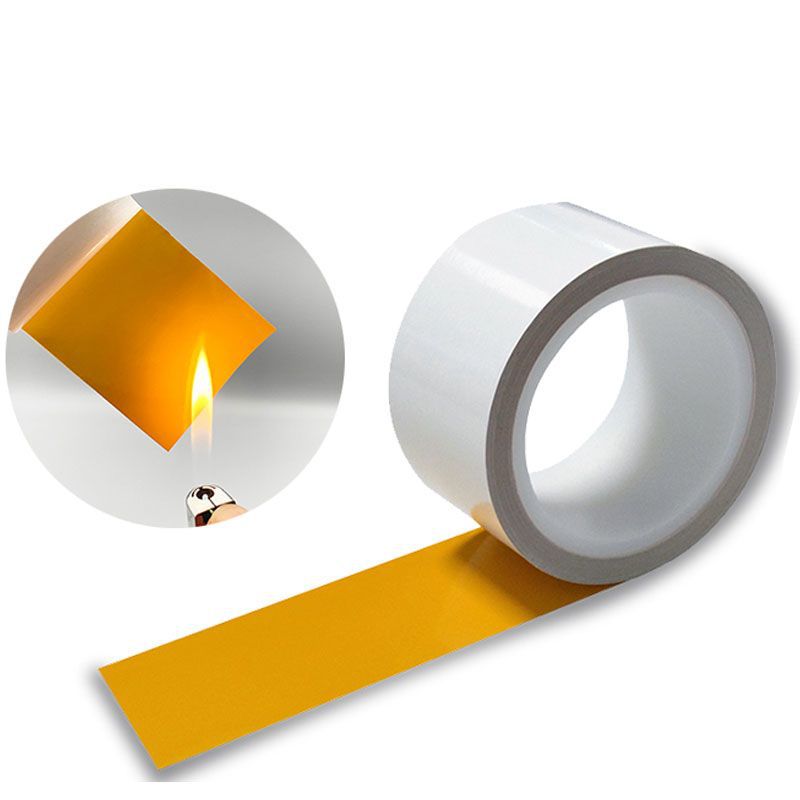

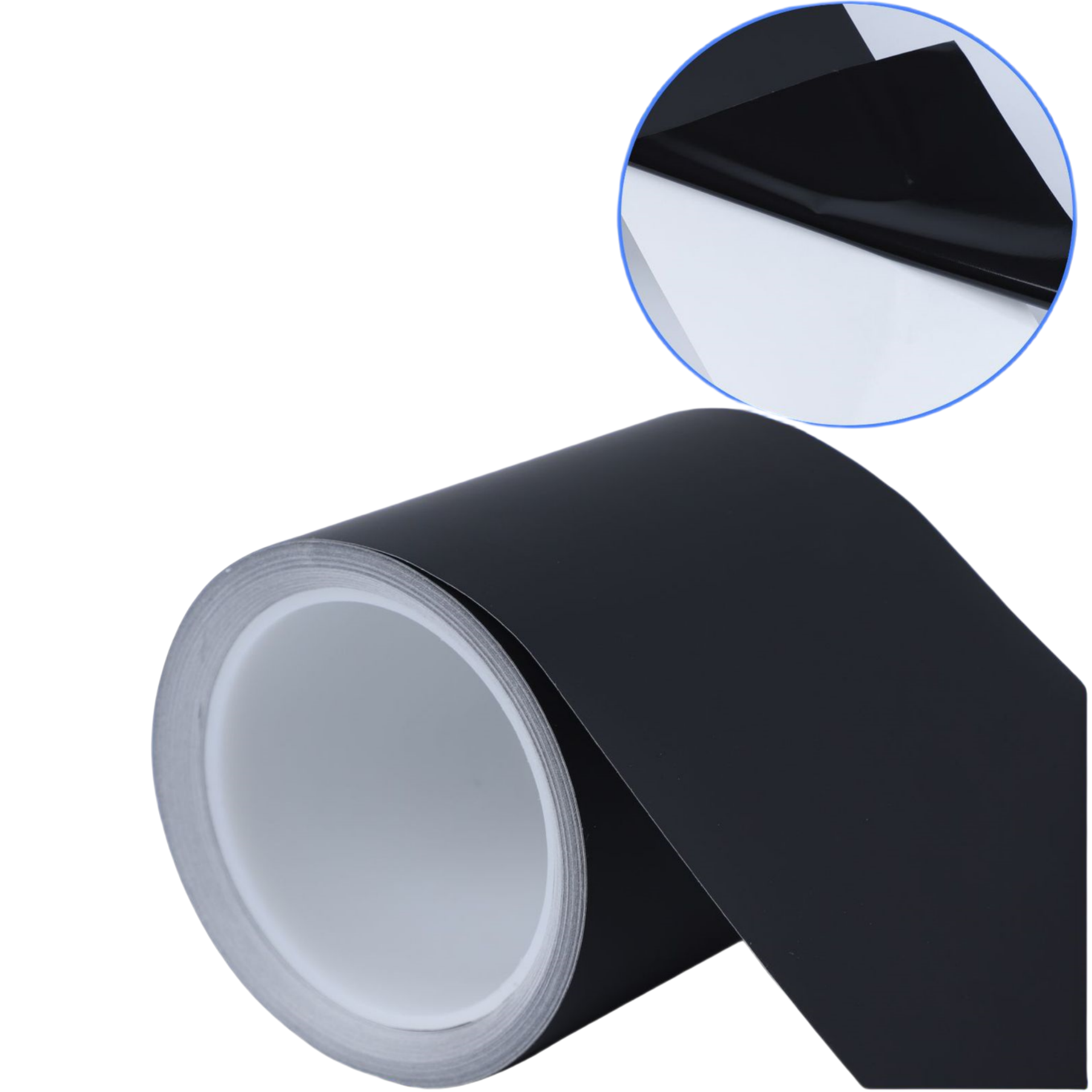

Gloss white high temperature sticker material	Matte white high temperature label material	Matte black high temperature label material

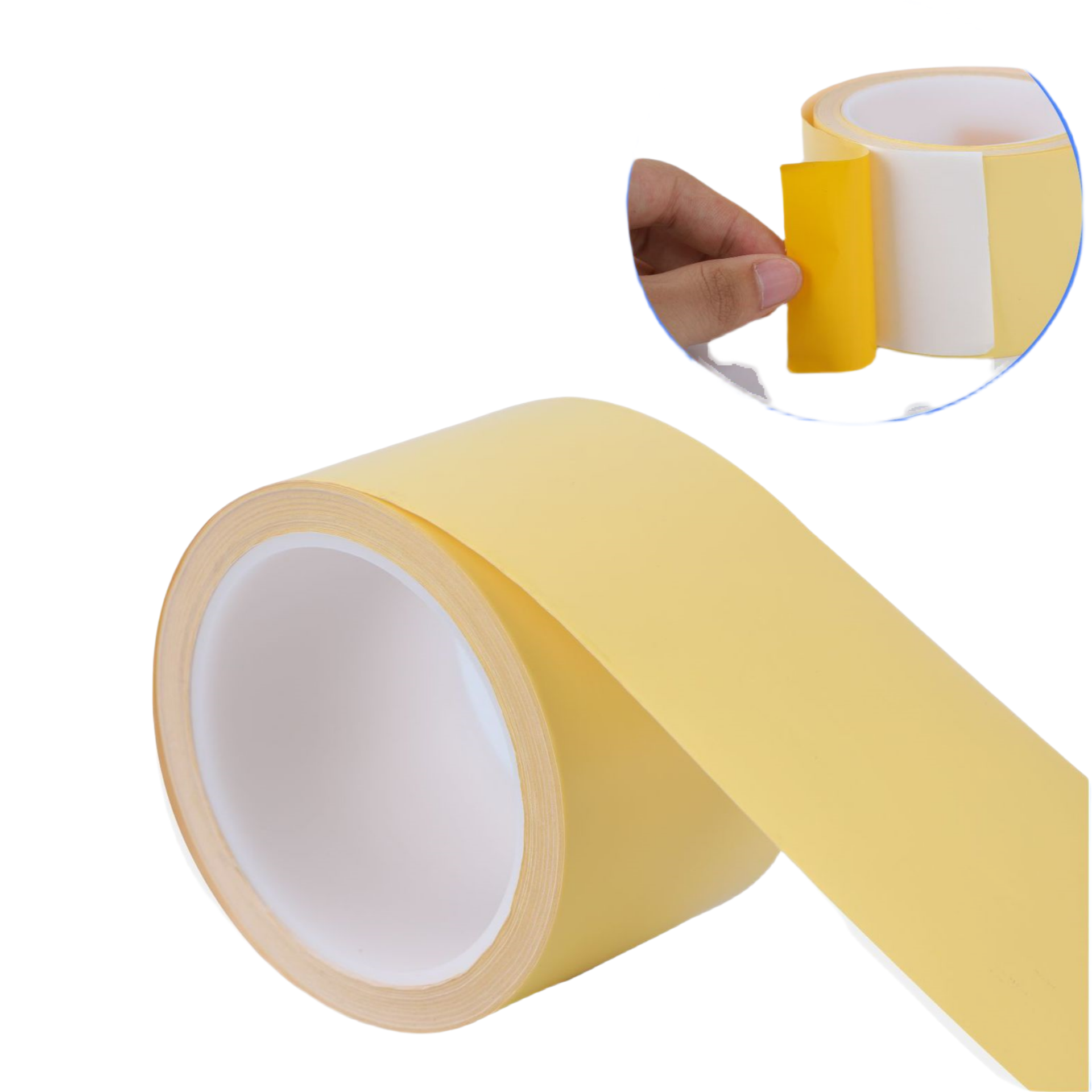

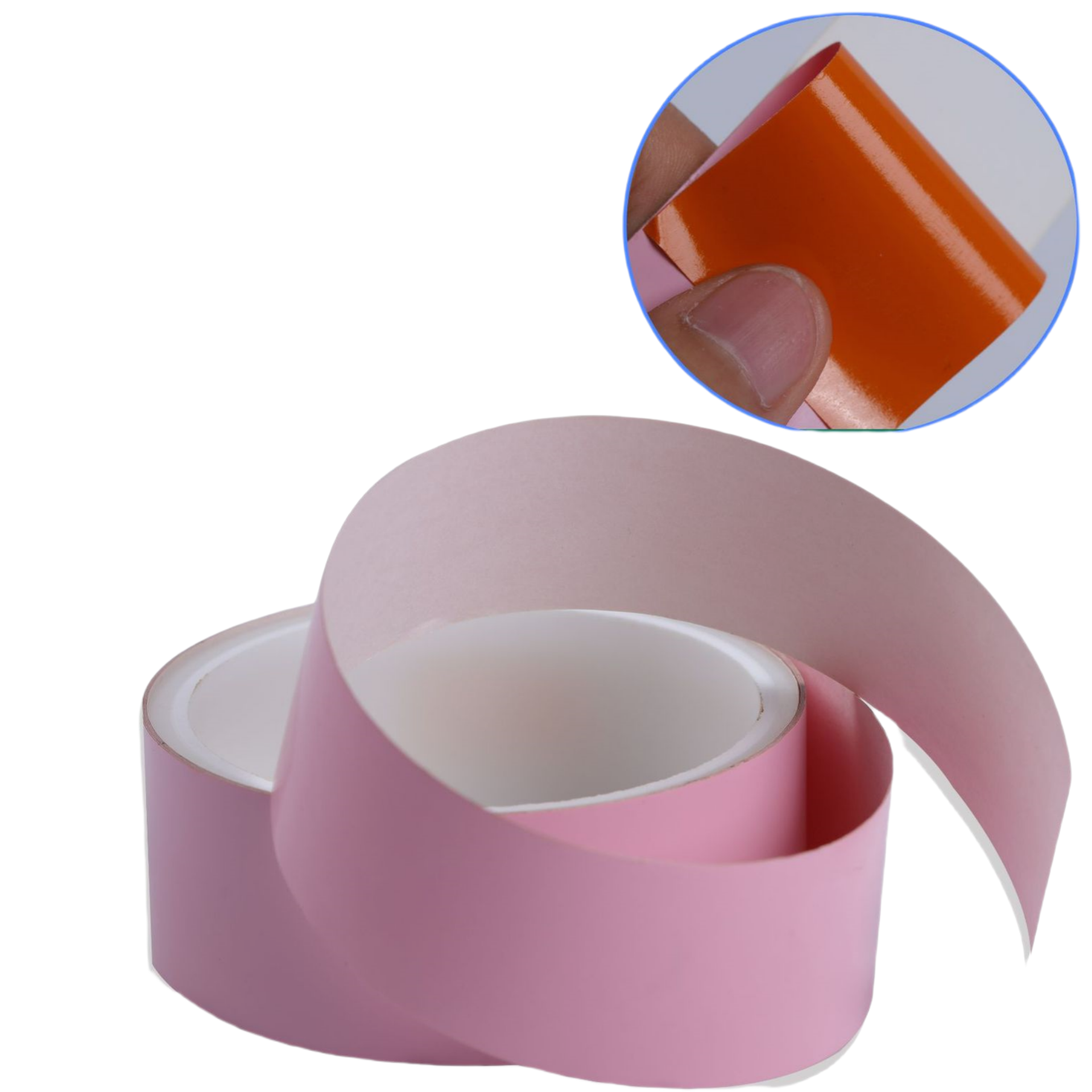

Grey high temperature sticker label material	Pink high temperature sticker label material	Yellow high temperature sticker label material

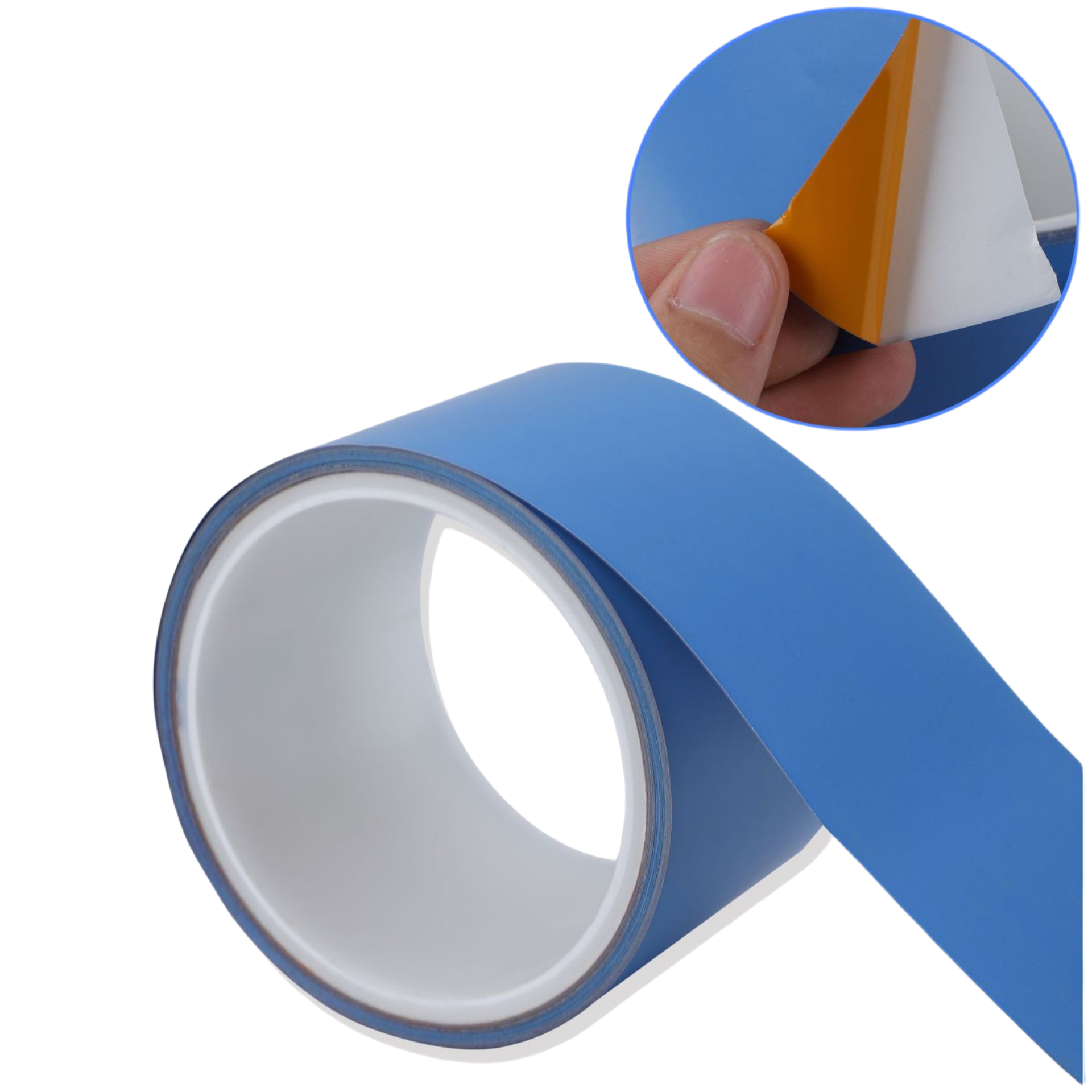

Blue high temperature sticker label material	Green Polyimide high temperature label material	Grey high temperature label sticker material

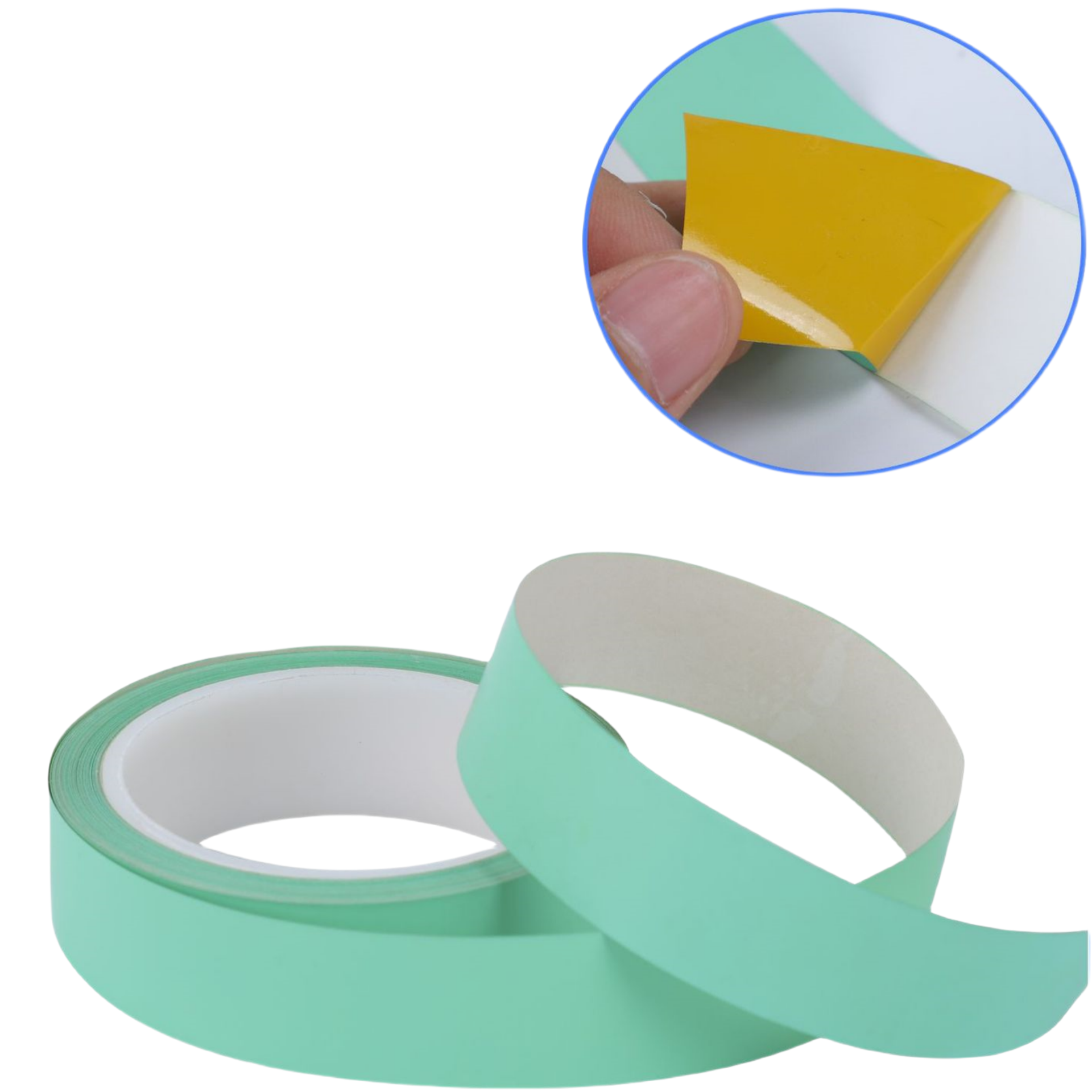

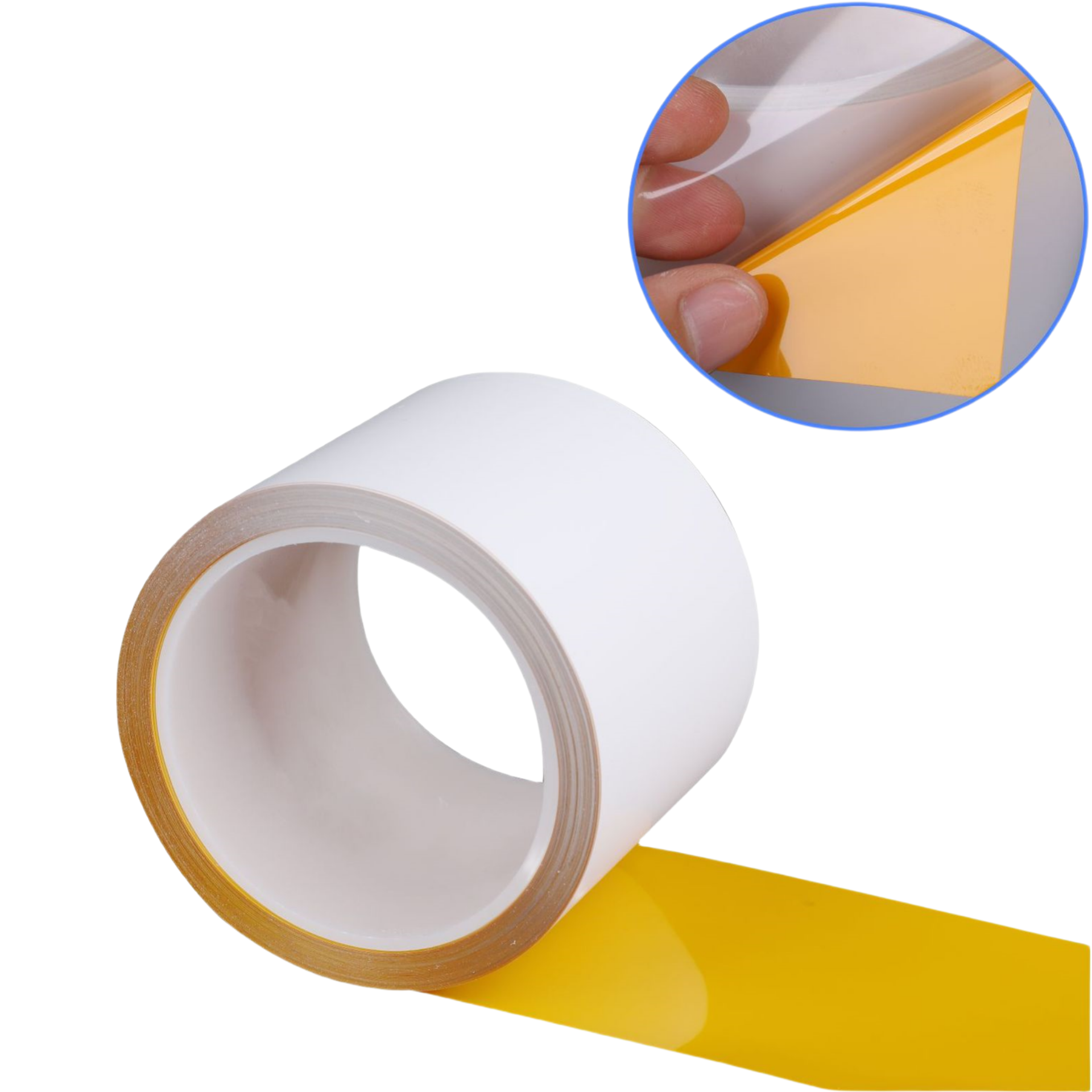

Flame retardant Polyimide high temperature label	Polyimide Anti-static high temperature label	Polyimide Transferable high temperature label

Core advantage

• Outstanding high-temperature resistance

Long-term temperature tolerance range: -269°C to +260°C (up to 300°C for short periods), suitable for high-temperature processes such as reflow soldering and wave soldering.

There is no warping or cracking, ensuring that the label remains intact and readable during the thermal cycle.

• High strength and durability

Polyimide substrates have excellent tear and tensile resistance, and can withstand mechanical friction and chemical solvents (such as alcohol, acetone, grease, etc.).

Anti-static design to prevent precision electronic components from being damaged by dust attraction due to static electricity.

• High-precision printing compatibility

Optimized for thermal transfer printing, when paired with resin-based carbon ribbons (recommended), it can present sharp text, barcodes and patterns, and is scratch-resistant without fading.

The grey matte surface offers high contrast, ensuring that scanning devices can identify quickly and accurately.

• Stable adhesion force

High-performance silicone or acrylic adhesives are available for selection, suitable for different material surfaces (metal, plastic, ceramic, etc.).

It has passed UL/CSA certification and complies with RoHS and REACH environmental protection standards.

Typical application scenarios

• Electronics industry: High-temperature process tracking labels for PCB boards, flexible circuit boards (FPC), electronic components, and power modules.
• Automobile manufacturing: Engine compartment wiring harness marking, oil-resistant sensor labels, permanent marking for on-board electronic devices.
• Aerospace: Component tracking labels and equipment maintenance record identifiers resistant to extreme temperatures and radiation.
• Medical equipment: Labels for devices that can withstand autoclaving and chemical disinfection, meeting medical-grade durability standards.
• Industrial manufacturing: Nameplates for high-temperature equipment, labels for chemical containers, traceability for automated production lines.

Technical parameters

• Attribute specification value
• Substrate thickness: 25μm / 50μm / 75μm (optional)
• Surface treatment: matte/glossy coating
• Adhesive type: High-temperature resistant silicone pressure-sensitive adhesive
• Peel strength (for stainless steel) ≥8 N/25mm
• Shelf life: 24 months (Store in the original packaging away from light)

Usage Suggestions

• Printing parameters: The recommended printing temperature is 120 - 140℃, and the speed is 50 - 80mm/s (the specific parameters need to be adjusted according to the printer model).
• Labeling requirements: Clean the surface of the object to be labeled to ensure there is no oil, dust; Apply uniform pressure after labeling to enhance adhesion.
• Customized service: Supports roll material cutting, die-cutting of special-shaped labels, pre-printing of serial numbers/QR codes, etc. to meet personalized requirements.


Why choose our blue polyimide labels?

• Full scene compatibility: From extremely low temperatures to extremely high temperatures, from laboratories to outdoor extreme environments, the identification integrity can be maintained.
• Data reliability: Specifically designed for the Industrial 4.0 traceability system, it ensures the readability of data for over ten years and reduces maintenance costs.
• Quick Response: Offer technical consultation, sample testing and customized solutions to help customers efficiently address complex identification challenges.

Optional specifications and services

•  Customized services: Support processing requirements such as pre-die-cutting of labels, slitting of rolls, and back printing of serial numbers.
• Recommended compatible carbon ribbons: Resin-based carbon ribbons (such as Wax-Resin or all-resin carbon ribbons) to ensure the best printing durability.

Packaging and Storage

• Standard packaging: Roll material (maximum outer diameter 300mm, core diameter 76mm), wrapped with anti-static film.
• Storage conditions: It is recommended to store in a cool and dry place (temperature 15-30°C, humidity 40-60%).

Quality Assurance
It has passed the ISO 9001 quality management system certification and provides batch traceability and third-party test reports (such as SGS).
