Stickers Key Attributes
Goods Name

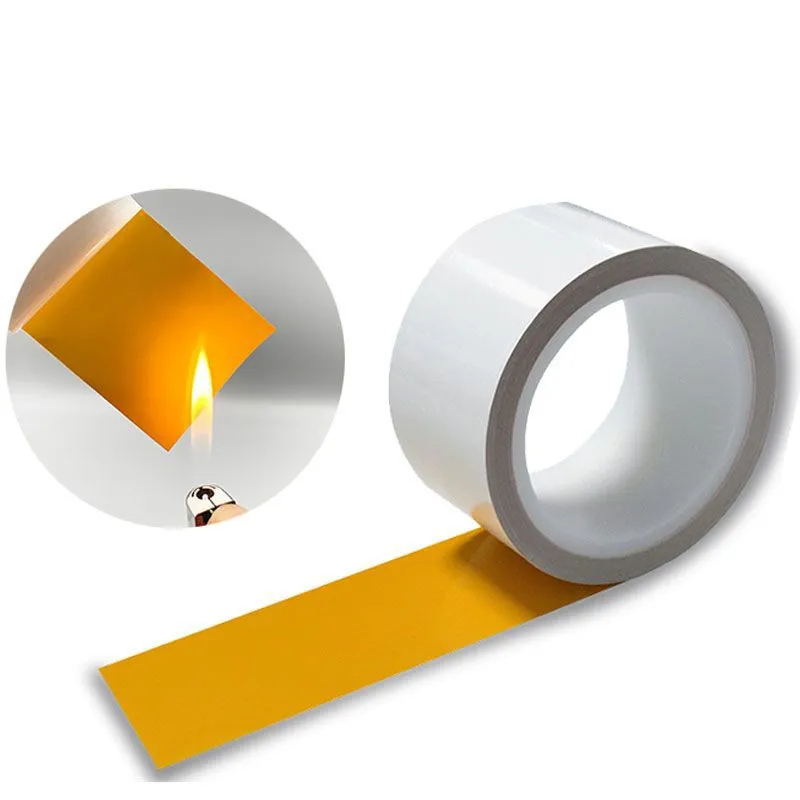

Gloss white polyimide high temperature sticker material
Surface Substrate
Gram Weight
ISO536 67±3 g/m2
Surface Treatment
20 um Nano Transfer Coating
Stickers Adhesive
Dry Coating Weight(g/m²)
ISO536 50±5 gsm
Release Paper
Material Name
Press Finish White Glasin
Gram Weight
ISO536 80±3 g/m2
Physical Test Data
180°Release Force
FTM3 ≤150 g/25mm
180°Peeling Force On Steel Plate
FTM1 ≥5 N/25mm
20 min 90° Peel Viscosity
FTM 2 6 N/25mm
24 hours 90° Peel viscosity
FTM 2 8 N/25m
Application Temperature
-40 ～+ 300℃
Minimum sticking Temperature
10℃
Maximum Sticking Temperature
+40℃
Release Force(g/in)
FTM3 20-30g
Initial Tack
ASTM D3759 ≥3# ,Steel Ball#
Holding Power
FTM8 ＞24h Hour
Shelf Life
It can be stored for one year at a temperature of 23±2℃ and relative humidity of 50±5%
Package Size
Dimensions Standard Width
Valid Width：1070mm，Slitting Minimum Width：25mm
Dimensions Standard Length
500M 1000M
Core Size
Diameter 75mm* Width 1070mm
About Stickers Goods Packing
Logistics
Use wrapping film, corrugated paper to wrap the product, and then use packing rope to secure the card.
Express
Use wrap film and foam wrap, then use corrugated paper to wrap the edge products.
Storage
Keep indoor,airiness,avoiding high humidity and direct sunlight,can keep one year in room temperature & humidity.
Other Attributes
Initial Viscosity (st,st):
FTM 9 8 N/25mm
Short-time High temperature Resistance
At 300 ºC (572 ºF) for 90 seconds
Product Details
Product Overview
White polyimide thermal transfer high temperature label sticker material is a high-performance industrial-grade label substrate specially designed for extreme environments. It adopts high-purity Polyimide (PI) film as the base material and is treated with a special coating on the surface, which can be perfectly compatible with thermal transfer printing technology and provide clear and long-lasting marking effects. This material features outstanding high-temperature resistance, chemical stability and mechanical strength, making it suitable for high-end manufacturing fields such as electronics, automobiles, aerospace and medical equipment, where the durability of labels is highly demanded.
 |
 |
 |
| Gloss white high temperature sticker material |
Matte white high temperature label material |
Matte black high temperature sticker label material |
 |
 |
 |
| Grey high temperature sticker label material |
Pink high temperature sticker label material |
Yellow high temperature sticker label material |
 |
 |
 |
| Blue high temperature sticker label material |
Green high temperature sticker label material |
Grey high temperature sticker label material |
 |
|
|
| Flame retardant high temperature label |
Anti-static high temperature label |
Transferable high temperature label |
Core characteristics
- Extreme temperature resistance performance
The base material of o adopts white polyimide (PI) film, which can withstand extreme temperatures ranging from -269°C to +260°C for a long time, with an instantaneous temperature resistance of up to 400° C. It is suitable for high-temperature welding, reflow soldering processes or harsh environments such as engine compartments.
It features an ultra-low thermal shrinkage rate, excellent dimensional stability in high-temperature environments, and prevents label warping or detachment.
- Excellent chemical resistance
It can resist the erosion of strong acids, strong alkalis, organic solvents (such as acetone, alcohol), oils and various industrial cleaning agents, ensuring the integrity of the label in complex chemical environments.
- High strength and flexibility
The O-polyimide substrate has excellent tear resistance and wear resistance, can withstand mechanical vibration, friction and repeated bending, and is suitable for marking curved surfaces or dynamic parts.
- High-contrast printing effect
The white matte/glossy surface coating optimizes ink adhesion. Combined with heat transfer printing (resin-based carbon ribbons are recommended), high-precision patterns such as text, barcodes, and QR codes are firmly attached, resistant to scratches and wear, ensuring long-term clarity and legibility.
- Insulation and flame retardancy
The o material has passed UL certification, with a high insulation grade (dielectric strength ≥5 kV/mm), and its flame retardancy complies with UL94 V-0 standard, ensuring the safety of electronic component identification.
- Environmental protection certification
It complies with RoHS, REACH and Halogen-Free requirements, and meets the demands of green manufacturing and global supply chain compliance.
- Chemical and mechanical stability
Resistant to strong acids, strong alkalis, solvents and oils, it is suitable for industrial scenarios in contact with chemical reagents.
High tensile strength and flexibility, tear resistance, warping resistance, and no pressure when adhering to curved or irregular surfaces.
Typical application scenarios
- Electronics industry: High-temperature process tracking labels for PCB boards, flexible circuit boards (FPC), electronic components, and power modules.
- Automobile manufacturing: Engine compartment wiring harness marking, oil-resistant sensor labels, permanent marking for on-board electronic devices.
- Aerospace: Component tracking labels and equipment maintenance record identifiers resistant to extreme temperatures and radiation.
- Medical equipment: Labels for devices that can withstand autoclaving and chemical disinfection, meeting medical-grade durability standards.
- Industrial manufacturing: Nameplates for high-temperature equipment, labels for chemical containers, traceability for automated production lines.
Technical parameters
- Attribute specification value
- Substrate thickness: 25μm / 50μm / 75μm (optional)
- Surface treatment: matte/glossy coating
- Adhesive type: High-temperature resistant silicone pressure-sensitive adhesive
- Peel strength (for stainless steel) ≥8 N/25mm
- Shelf life: 24 months (Store in the original packaging away from light)
Optional specifications and services
- Customized services: Support processing requirements such as pre-die-cutting of labels, slitting of rolls, and back printing of serial numbers.
- Recommended compatible carbon ribbons: Resin-based carbon ribbons (such as Wax-Resin or all-resin carbon ribbons) to ensure the best printing durability.
Packaging and Storage
- Standard packaging: Roll material (maximum outer diameter 300mm, core diameter 76mm), wrapped with anti-static film.
- Storage conditions: It is recommended to store in a cool and dry place (temperature 15-30°C, humidity 40-60%).
Quality Assurance
It has passed the ISO 9001 quality management system certification and provides batch traceability and third-party test reports (such as SGS).
Product FAQ
It is necessary to understand the specific industry and application, environmental conditions, service life, adhesion surface and other requirements, in order to meet the performance requirements such as temperature resistance, moisture resistance, cold and heat cycle resistance, chemical reagent wiping/soaking resistance, wear resistance, UV aging resistance, salt spray test, and adhesion
Rubber vulcanization label is a special label specially designed for use in the high-temperature and high-pressure vulcanization process of rubber products. It can withstand the extreme environment of the vulcanization process and firmly adhere to rubber products after vulcanization, providing necessary identification information.
Heat treatment labels are made of high-temperature resistant materials (such as metals and ceramics) and use special permanent marking methods (such as engraving, etching, and high-temperature ink). After enduring the harsh high-temperature environment of heat treatment, it can still clearly and reliably identify and track the information of parts or batches, ensuring the traceability of the production process and quality control.
Anti-static stickers are functional stickers that suppress the generation and accumulation of static electricity through special surface treatment (anti-static coating). In application scenarios such as electronic manufacturing, logistics, and medical care that are sensitive to static electricity or pose static electricity risks, protect products, ensure operational safety, and maintain environmental cleanliness.
Outdoor weatherproof stickers are special label stickers designed for use in outdoor environments. They can maintain their appearance, integrity and secure adhesion for a long time in harsh outdoor conditions.
Low energy surface label sticker are suitable for applications where there are high requirements for cleanliness, durability, chemical resistance, or where they need to be adhered to substrates with low surface energy such as PTFE, silicone rubber, HDPE, and PP, which are difficult to bond.
If you have any questions about our head Stickers material products, please feel free to contact us.
