Stickers Key Attributes
Goods Name

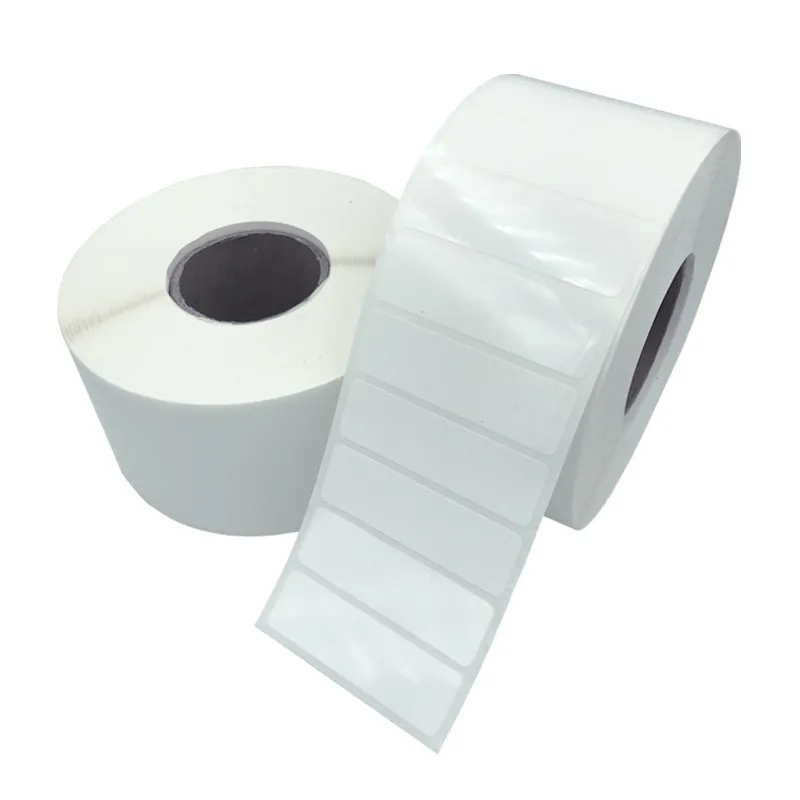

Gloss White PET Resistant Solvent Label Material
Surface Substrate
Gram Weight
ISO536 67±3 g/m2
Longitudinal Tensile Strength
≥110 N/2.5CM
Transverse Tensile Strength
≥160 N/2.5CM
Surface Treatment
20 um Nano Transfer Coating
Stickers Adhesive
Dry Coating Weight(g/m²)
ISO536 22±5 gsm
Release Paper
Material Name
Press Finish White Glasin
Release Force(g/in)
FTM3 10-20g
Gram Weight
ISO536 78±3 g/m2
Physical Test Data
Initial Tack
ASTM D3759 ≥3# ,Steel Ball#
Holding Power
FTM8 ＞24h Hour
24 hours 90° Peel viscosity -FTM 2(st,st) :
9.0
20 min 90° Peel viscosity -FTM 2(st,st) :
9.0
180°Peeling Force On Steel Plate
FTM1 ≥8 N/25mm
180°Release Force
FTM3 ≤8 g/25mm
Shelf Life
It can be stored for one year at a temperature of 23±2 C and relative humidity of 50±5%.
Maximum Sticking Temperature
+40℃
Minimum Sticking Temperature
-10℃
Application Temperature
-10 ～+ 80℃
Package Size
Dimensions Standard Width
Valid Width：1070mm，Slitting Minimum Width：25mm
Dimensions Standard Length
400M 800M 1000M 2000M
Core Size
Diameter 75mm* Width 1070mm
About Stickers Goods Packing
Storage Temperature
-10℃-40℃
Storage
Keep indoor,airiness,avoiding high humidity and direct sunlight,can keep one year in room temperature & humidity.
Logistics
Use wrapping film, corrugated paper to wrap the product, and then use packing rope to secure the card.
Express
Use wrap film and foam wrap, then use corrugated paper to wrap the edge products.
Other Attributes
Longitudinal Tensile Strength
≥80 N/2.5CM
Transverse Tensile Strength
≥150 N/2.5CM
Product Details
Product Overview
Solvent resistant label material is a high-performance label material specially designed for harsh industrial environments, suitable for scenarios that require long-term resistance to solvents, oil stains, chemical corrosion, and high and low temperature conditions. This material is composed of a special coating process and high-strength substrate, combined with thermal transfer printing technology. It can clearly present high-precision graphic and text information, and at the same time ensure that the label maintains excellent adhesion and durability after contact with solvents. It is an ideal choice for industrial manufacturing, chemical product packaging, electronic component identification and other fields.
Core advantage
- Excellent solvent resistance
Through special coating treatment and base material optimization, it can withstand the erosion of strong polar solvents such as alcohols, ketones, and esters, as well as chemical substances like oils, acids, and alkalis, preventing the label from fading, lifting edges, or falling off.
It complies with international chemical resistance test standards such as ASTM D5481 and ISO 105-B02, ensuring long-term stability.
- Highly compatible thermal transfer printing
The surface coating is specially optimized for thermal transfer carbon ribbons (resin-based/mixed-based carbon ribbons are recommended), achieving high-resolution graphic and text output with a barcode scanning rate of ≥99.9%.
After printing, the ink layer is firm, scratch-resistant and anti-fingerprint, making it suitable for high-speed labeling requirements in automated production lines.
- All-environment durability guarantee
Wide temperature resistance range: -40℃ to +150℃ (some models can reach +200℃), suitable for scenarios such as cold storage, high-temperature baking, and steam sterilization.
Waterproof and oil-proof: The dense surface structure effectively blocks liquid penetration, maintaining the integrity of the logo even in damp or oily environments.
High mechanical strength: tear-resistant, bendable, and not prone to damage when adhering to curved or rough surfaces.
- Diversified adhesive options
We offer permanent acrylic adhesives (suitable for smooth surfaces of metals, plastics, glass, etc.), removable adhesives (with no residue design), and low-temperature resistant adhesives (with no reduction in adhesion at -30℃), adapting to different substrate and environmental requirements.
- Environmental Protection and Safety
It complies with environmental protection standards such as RoHS and REACH, does not release toxic substances, and is suitable for industries with strict safety requirements such as food and medicine.
Typical application scenarios
- Chemical industry: Chemical reagent drums, hazardous materials storage tank labels, laboratory sample labels.
- Automobile manufacturing: engine parts, transmission oil circuit labels, oil-resistant wiring harness markings.
- Electronics industry: PCB board traceability labels, labels for electronic components that are resistant to cleaning.
- In the medical field: sterilization labels for medical devices, batch tracking of drug production.
- Outdoor equipment: Nameplates for construction machinery, markings for oil and gas pipelines.
Attribute parameter value
- The base material is matte white polyester (PET)
- Thickness: 100μm ±5%
- Applicable carbon ribbon types: resin-based/mixed-based carbon ribbons
- Minimum labeling temperature: 10℃ (Suggested ambient temperature ≥15℃)
- Solvent resistance test: No delamination or deformation after 24 hours of immersion (a test report on specific solvent compatibility can be provided)
- Storage conditions: temperature 20-25℃, humidity 40-60%
Packaging specification:
- Standard widths of rolls: 100mm, 150mm, 200mm (slitting customization supported)
- Core inner diameter: 76mm/3 inches, coil length: 10m - 50m (adjustable as needed)
Notes:
- Please keep the original packaging when storing and avoid high-temperature and high-humidity environments.
- Before labeling, ensure that the surface of the object to be labeled is clean and dry to achieve the best adhesion effect.
It is recommended to conduct compatibility tests in advance for special solvent environments.
Quality commitment
This product has passed SGS and RoHS certifications and comes with a 12-month warranty period. We offer free sample trials and professional technical support to help your industrial identification system upgrade efficiently!
Product FAQ
It is necessary to understand the specific industry and application, environmental conditions, service life, adhesion surface and other requirements, in order to meet the performance requirements such as temperature resistance, moisture resistance, cold and heat cycle resistance, chemical reagent wiping/soaking resistance, wear resistance, UV aging resistance, salt spray test, and adhesion
Rubber vulcanization label is a special label specially designed for use in the high-temperature and high-pressure vulcanization process of rubber products. It can withstand the extreme environment of the vulcanization process and firmly adhere to rubber products after vulcanization, providing necessary identification information.
Heat treatment labels are made of high-temperature resistant materials (such as metals and ceramics) and use special permanent marking methods (such as engraving, etching, and high-temperature ink). After enduring the harsh high-temperature environment of heat treatment, it can still clearly and reliably identify and track the information of parts or batches, ensuring the traceability of the production process and quality control.
Anti-static stickers are functional stickers that suppress the generation and accumulation of static electricity through special surface treatment (anti-static coating). In application scenarios such as electronic manufacturing, logistics, and medical care that are sensitive to static electricity or pose static electricity risks, protect products, ensure operational safety, and maintain environmental cleanliness.
Outdoor weatherproof stickers are special label stickers designed for use in outdoor environments. They can maintain their appearance, integrity and secure adhesion for a long time in harsh outdoor conditions.
Low energy surface label sticker are suitable for applications where there are high requirements for cleanliness, durability, chemical resistance, or where they need to be adhered to substrates with low surface energy such as PTFE, silicone rubber, HDPE, and PP, which are difficult to bond.
