Stickers Key Attributes
Goods Name
Unbacked Thermal Label Paper Material
Surface Substrate
Material Name
Thermal Paper
Gram Weight
ISO536 70±2 g/m2
Longitudinal Tensile Strength
≥30 N/2.5CM
Transverse Tensile Strength
≥80 N/2.5CM
Surface Treatment
10 um Nano Thermal Coating
Stickers Adhesive
Dry Coating Weight(g/m²)
ISO536 22±2 gsm
Physical Test Data
Initial Tack
ASTM D3759 ≥8.0N/6.25cm2
Holding Power
FTM8 ＞4 h Hour/2.5CM
180°Peeling Force On Steel Plate
FTM1 ≥10 N/25mm
180°Release Force
FTM3 ≤150 g/25mm
Shelf Life
It can be stored for one year at a temperature of 23±2 C and relative humidity of 50±5%.
Maximum Sticking Temperature
+40℃
Minimum Sticking Temperature
-10℃
Application Temperature
-10 ～+ 60℃
Package Size
Dimensions Standard Width
Valid Width：1070mm，Slitting Minimum Width：50mm
Dimensions Standard Length
400M 800M 1000M 2000M
Core Size
Diameter 75mm* Width 1070mm
About Stickers Goods Packing
Storage Temperature
-10℃-40℃
Storage
Keep indoor,airiness,avoiding high humidity and direct sunlight,can keep one year in room temperature & humidity.
Logistics
Use wrapping film, corrugated paper to wrap the product, and then use packing rope to secure the card.
Express
Use wrap film and foam wrap, then use corrugated paper to wrap the edge products.
Product Details

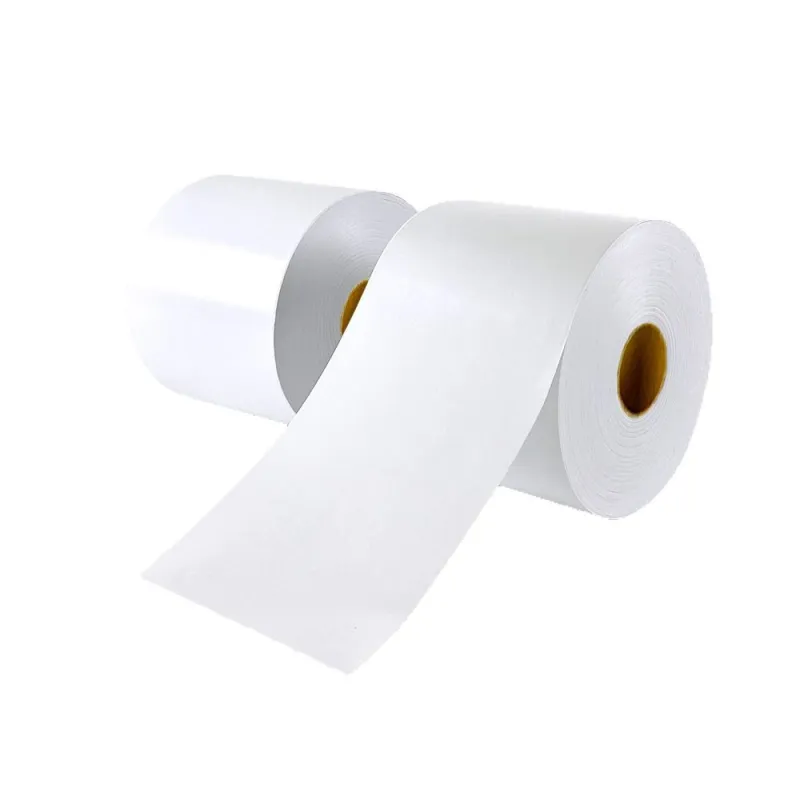

Unbacked Thermal Label Paper Material
Environmental protection innovation, efficiently empowering smart printing
Product Overview
The backing paperless thermal label material is an innovative label solution. By eliminating the backing paper design, it completely overturns the traditional label structure, eliminating the backing paper (release paper) layer and directly using the thermal coating and adhesive combination technology to achieve the label's immediate use after tearing. The product is applicable to various scenarios such as logistics and warehousing, retail cashiering, medical labels, and industrial identification. It is both environmentally friendly and economical, helping enterprises reduce costs and increase efficiency.
Core advantages of the product
- Green and environmentally friendly, a pioneer of low carbon
Zero backing paper waste: Eliminate the backing paper layer of traditional labels, reducing waste by 30% to 40% and lowering pollution from landfill and incineration.
Comply with environmental protection regulations: Meet international standards such as the EU REACH and RoHS, and help enterprises achieve their carbon neutrality ESG goals.
- Cost reduction and efficiency improvement, economical and practical
Save on consumable costs: Reduce the purchase, storage and processing expenses of base paper, and lower the overall cost by approximately 20%.
Enhance operational efficiency: No need to peel off the backing paper, labels can be continuously printed, compatible with high-speed automatic labeling equipment, significantly increasing production capacity.
- Outstanding performance, stable and reliable
High-sensitivity thermal sensitive layer: Low-temperature color development technology (applicable to print heads at 50-80℃), clear images, scratch-resistant, and information retention period of up to 1-3 years (under dark conditions).
Strong adhesive: Suitable for various surfaces (cartons, plastics, metals, etc.), with stable adhesion in an environment ranging from -20℃ to 80℃, and resistant to moisture and oil stains.
Ultra-thin and flexible base material: Made of high-strength polyester or synthetic paper, it is tear-resistant and easy to die-cut, suitable for the requirements of irregular-shaped labels.
- Intelligent adaptation, convenient compatibility
Supports mainstream thermal printers (such as Zebra, Honeywell, TSC, etc.) without the need to replace the print head.
Customizable size, shape, pre-printed LOGO or anti-counterfeiting code to meet personalized needs.
Reduce the cost of base paper procurement and waste disposal, increase the number of labels per roll, and lower the overall usage cost.
It is suitable for high-frequency printing scenarios (such as e-commerce logistics), and has better economic efficiency in long-term use.
Typical application scenarios
- Logistics transportation: Waybills, express labels, seamless integration with the automated sorting system.
- Supermarket retail: Price tags, fresh food labels, supporting real-time dynamic price updates.
- Industrial manufacturing: Product traceability labels, warehouse management, strong weather resistance.
- Medical and health care: Drug information, specimen labels, safety and non-toxicity certification.
Technical parameters
- Project Parameter description
- Base material thickness: 60-100μm (customizable)
- Top-grade hybrid color-developing formula for heat-sensitive coating types
- Applicable temperature range: -20℃ to +80℃
- The maximum printing speed is supported at 300mm/s
- The minimum print density is available in 203dpi and 300dpi
- Usage suggestions
- Storage conditions: Cool, dry and dark place (recommended temperature 10-30℃, humidity 40-60%).
- Printer Settings: It is recommended to use the "paperless mode" and adjust the pressure roller to avoid excessive friction.
- Labeling surface: Clean and dry, free of oil stains and dust.
Our commitment
- As a leader in paperless label technology, we offer:
- Free sample test
- 24-hour technical consultation
- Customized solutions
- Environmental certification support
Usage Tips
- Storage conditions: It is recommended to store in a cool and dry place (temperature 15-25℃, humidity 40-60%).
- It is recommended to pair it with a dedicated printer without backing paper to avoid the risk of paper jams.
Born for the future, making labels smarter and more environmentally friendly!
- Choosing thermal label materials without backing paper is not only about selecting efficient tools, but also a wise choice to fulfill green responsibilities.
- The details can be further adjusted according to the actual product characteristics (such as adhesive type, temperature resistance range, special certifications, etc.) to precisely match the needs of the target customers.
Product FAQ
Flexographic printing dedicated self-adhesive materials are multi-layer composite label materials designed for flexographic printing processes. Their core features are: withstanding high-speed printing at over 200 meters per minute, matching the rapid drying characteristics of water-based /UV inks, and the roll material is stretchable, ensuring registration accuracy (±0.1mm)
ECO solvent UV printing self-adhesive material is an environmentally friendly label material, specially designed for ECO solvent UV inkjet printers. It combines the low pollution of ECO solvent ink with the immediate drying feature of UV curing technology, allowing for direct printing and curing of graphics and text on the surface material.
HP Indigo sticker material is a specially coated self-adhesive material optimized for HP electronic ink digital printing machines, achieving high-quality printing effects comparable to offset printing through electronic ink technology
Thermal label material is a special type of self-adhesive label that does not require carbon ribbons or ink. Its surface is coated with a thermal sensitive coating (containing dark dyes and color developers), and through the heat effect of the thermal print head, it directly shows color and forms an image.
Thermal transfer label material is a type of label material that is used in conjunction with a thermal transfer printer and a dedicated ribbon (carbon ribbon). During printing, the print head heats up to transfer the ink on the ribbon to the label surface, forming long-lasting and clear graphics and text. The heat-pressed transfer ink achieves high damage resistance and long-term preservation of the label, which is an essential choice in industries such as manufacturing, logistics, and medical care
