Stickers Material Product

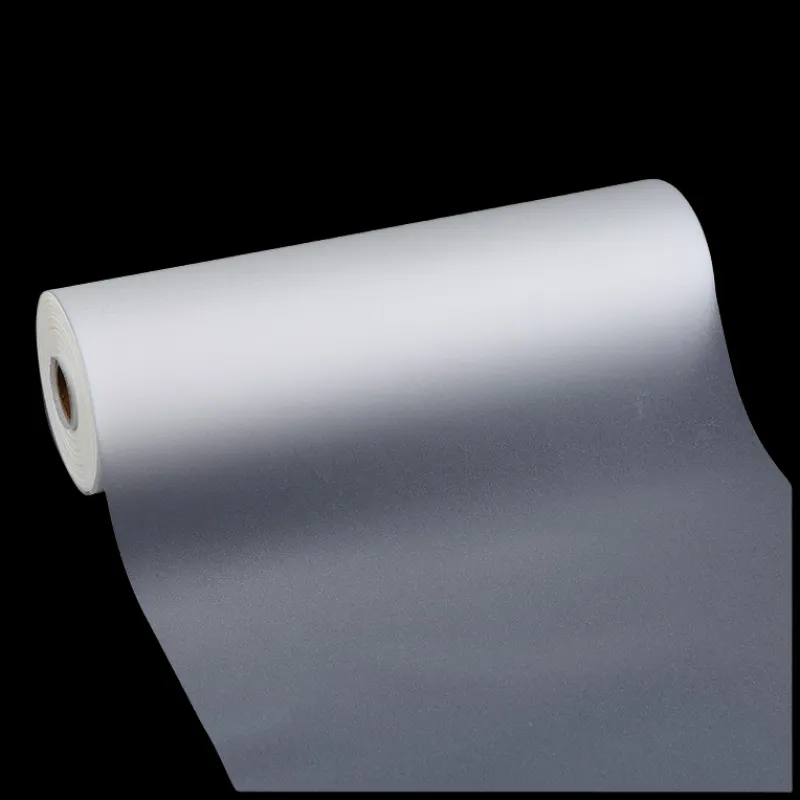

Frosted Texture Thermal Lamination Film Roll

Frosted Texture Thermal Lamination Film Roll

Frosted texture thermal lamination film roll is a professional-grade frosted hot lamination film that offers long-lasting protection and an elegant matte texture. Through the thermal lamination process, it forms a strong, wear-resistant and waterproof transparent barrier, while providing a soft matte surface. It effectively eliminates glare, enhances visual comfort and professional touch, and is an ideal choice for those who pursue quality and durability.

Stickers Key Attributes

Goods Name
Frosted Texture Thermal Lamination Film Roll

Surface Substrate

Material Name
BOPP
Gram Weight
ISO536 16±3 g/m2
Thickness
ISO534 20±3 μm
Color
Holographic Transparent

Stickers Adhesive

Adhesive Type
Blend modified hot melt adhesive Or Organic polymer low temperature resin
Dry Coating Weight(g/m²)
ISO536 10 gsm
Thickness
ISO534 8 μm

Release Paper

Material Name
No
Gram Weight
No
Thickness
No
Color
No

Physical Test Data

Coating Speed
50-70m/min
Application Temperature
80-100℃
Minimum Sticking Temperature
-10℃
Maximum Sticking Temperature
+40℃

Package Size

Dimensions Standard Width
Valid Width:1020mm,Slitting Minimum Width:320mm
Dimensions Standard Length
200M-3000M
Bag Roll Core Size
Diameter 75mm* Width 1020mm
Joint
3000M ≤0

About Stickers Goods Packing

Logistics
Use wrapping film, corrugated paper to wrap the product, and then use packing rope to secure the card.
Express
Use wrap film and foam wrap, then use corrugated paper to wrap the edge products.
Storage
Keep indoor,airiness,avoiding high humidity and direct sunlight,can keep one year in room temperature & humidity.

Other Attributes

Surface Treatment
5um Release Silicone Oil
Pressure
20-25MPa
Longitudinal Tensile Strength
≥60 N/2.5CM
Transverse Tensile Strength
≥40 N/2.5CM
Surface Tension
4.0 x 10-2N/m
Product Core Size
25.4 mm(1 inch), 76 mm(3 inch)

Product Details

Product Name: Frosted texture thermal lamination film
Light up your works and endow them with lasting and dazzling charm!

Product Brief:

Frosted texture thermal lamination film is a professional-grade frosted thermal lamination film that offers long-lasting protection and an elegant matte texture. Through the thermal lamination process, it forms a strong, wear-resistant and waterproof transparent barrier, while providing a soft matte surface. It effectively eliminates glare, enhances visual comfort and professional touch, and is an ideal choice for those who pursue quality and durability.

Thermal Lamination Film Roll Model Selection:

Advantages of Using Thermal Lamination Film Roll

  • Classic matte texture: The unique matte treatment on the surface presents a soft and non-reflective matte effect, endowing the work with a low-key and reserved high-end feel. Effectively reduce light reflection to ensure that the content is clear and legible under any lighting conditions.
  • Outstanding and long-lasting protection: Made of high-quality polyester film, it is thermally laminated to closely adhere to the covered object, forming a strong and tough protective layer. It is effectively waterproof, dustproof, stain-proof, fingerprint-proof and tear-proof, significantly extending the lifespan of the work.
  • Enhance visual and tactile experience: The matte surface not only looks more professional visually but also offers a unique, fine, and frosted feel when touched, which is different from the slippery feeling of ordinary glossy films, enhancing the overall texture and user experience of the work.
  • Compatibility and clarity: The high transparency design ensures that the colors remain vivid and bright after lamination, with details clearly visible. It is suitable for various inkjet printing, laser printing of documents, photos, hand-drawn works and ordinary paper.
  • Professional hot lamination process: Specifically designed for hot laminating machines (to be used in conjunction with hot mounting machines), after heating and pressurization, a permanent seal is formed, ensuring a firm bond and being less prone to bubbling or delamination. Different thickness specifications (commonly such as 75/100/125 micron) are provided to meet the requirements of different protection strengths.
  • Wide applicability: It is an ideal choice for making menus, business cards, table cards, bookmarks, ID cards, teaching charts, product labels, posters, art replicas, photo displays, etc. It is especially suitable for items that need to be touched frequently or displayed in strong light.

Thermal Lamination Film Roll Specifications:

Substrate type: High-transparency BOPP/PET

Hot Laminate Film Substrate thickness: 19μm / 23μm/other μm

Laser patterns: [For example: 2D dynamic pixel light columns / 3D stereoscopic light patterns/Specific custom patterns]

Hot melt adhesive type: [e.g. Eva-based/PUR A-based] High-performance hot melt adhesive

Adhesive layer thickness: 12 μm

Applicable temperature range: [For example: Bonding temperature 90°C - 130°C] (For details, please refer to the operation guide)

Applicable equipment: Hot laminating and laminating machine, laminating machine with heating roller, etc.

Roll specifications: [For example: Width 310~1880mm, core inner diameter 25.4mm (1 inch), 58mm (2.25inches), 76mm (3 inches), length 100 to 3000M]

Color effects: Transparent rainbow laser/Specific monochrome laser/Other special effects

Why Choose Our Frosted Texture Thermal Lamination Film Roll?
Beyond ordinary lamination: It not only provides basic protection but also endows the work with unique decorative value and high added value.

A cost-effective choice: Achieve special process effects comparable to those of professional printing factories at a reasonable cost.

Easy to operate: Standard hot laminating process, no additional complex equipment or technology required.

Unleash boundless creativity: It is the ideal choice for designers, photographers, cultural and creative workers, marketers, and individual users who pursue quality, adding infinite possibilities to their works.

Crown your precious work with a layer of shining armor! Choose the flash hot laminated film to make every presentation brilliant and timeless.

Thermal Lamination Film Roll Target Customers:

If it is for packaging factories: more emphasis is placed on production efficiency, cost-effectiveness, processing yield, and compatibility with commonly used base materials (gray board, cardboard).

If it is for brand owners/designers: more emphasis is placed on visual effects, design sense, enhancing brand image, and unique selling points (USP).

If it is targeted at a specific industry (such as cosmetics) : emphasize a sense of luxury, touch experience, anti-fingerprint, and compatibility with the contents (anti-permeation).

Specific product parameters: Basic information such as film thickness, common width, roll length, and storage conditions can be added (if as part of the detailed specification sheet).

Highlight specific textures/effects: If there are star textures (such as specific leather textures, special metallic effects), they can be described separately as key points.

Emphasize customization: If the company's strength lies in custom development, it is necessary to prominently highlight "Support for exclusive texture customization" in the description.

Add certification information: If there are specific food safety certifications (such as FDA), forest certification (FSC), etc., be sure to add them.

Thermal Lamination Film Roll If Using:
1. Turn the pressure regulator handle on the box on both sides of the cold press machine, separate the upper and lower two axes, put the picture to be mounted and the cold press film into the two axes at the same time, turn the pressure regulator handle, so that the upper axis moves parallel down, when the pressure regulator handle feels suddenly relaxed, it means that the upper and lower two axes have been in contact, please do not continue to press down. Simply tighten the pressure regulator gently. If the pressure continues, the shaft will be deformed and the operation will fail

2. After the pressure is adjusted, the graph between the two axes and the cold-pressed film are withdrawn from between the two axes. Prepare to press the film.

Question 1. When a large area of the screen has the feeling of "fog"
1. Insufficient film pressure -- adjust the pressure of the cold mounting machine;
2. The two ends of the cold laminating machine are not smooth -- adjust the adjusting screws of the distance between the cold laminating machines to achieve equal distance;
3. Over-photo paper - the surface of the photo paper is uneven, generally about 25 degrees, placed 2-3 hours will automatically disappear, the higher the temperature will disappear faster;
4. Over PP glue --A. hand touch PP glue screen if there is no "rough" feeling, then according to the above method; B. There is a "rough" feeling that requires more PP backing glue;
5. Glue viscosity is not good at low temperature --A. Improve the use of ambient temperature. B. Replace the cold mounting film

Question 2. When there is a "white spot" behind the screen
1. The glue is not sticky enough --A. Increase the ambient temperature,B. Replace the cold mounting film;
2. Thin glue - the general distance is not long, the probability of greater before and after shutdown, generally pull off a few meters;
3.PP adhesive surface hand touch "rough" feeling --A. Replace PP adhesive,B. Or use studio film over the picture;
4. There is dust in the air --A. Purify the operating environment,B. Close the blower or air inlet source;
5. Water droplets (such as saliva) inadvertently splash on the surface of the spray painting --A. Pay attention when operating, especially when speaking, do not face the picture,B. Air temperature in dry environment, such as air conditioning, hot fan or ventilation.

Question 3. When there are "bubbles" immediately after painting
1. The glue does not "mature" -- change the cold mounting film

Question 4. It is fine after painting, but there are "bubbles" after leaving it for a while (or the next day).
1. The glue is not "matured" thoroughly -- open the cold mounting film
Pack and place in the air for 2-5 days to allow the glue to fully "mature" under natural conditions;


2. The picture is not sufficiently dry, especially in winter, because there are antifreeze components in the winter ink, which is not easy to volatilize completely.- Let the picture be fully dry, the general winter time is twice as long as summer and autumn above, and then over the painting (must pay attention to dust);


3. Large area single color such as: all black/all red, etc. --A. Light color,B. Replace ink,C. Fully dry the picture (completely dry),D. heat the picture,E. replace the more viscous cold mounting film, the thinner the better.


4. The ambient temperature is low, so that the cold laminating film surface is too hard -- improve the ambient temperature when using;


5. Cold mounting film is too thick -- replace it with a thin cold mounting film;


6. Roll up immediately after painting, the glue and the picture are not fully integrated - after painting, place it flat for more than 45 minutes and then roll it up.


7. Aging glue -- Replace the cold mounting film.
