Stickers Material Product

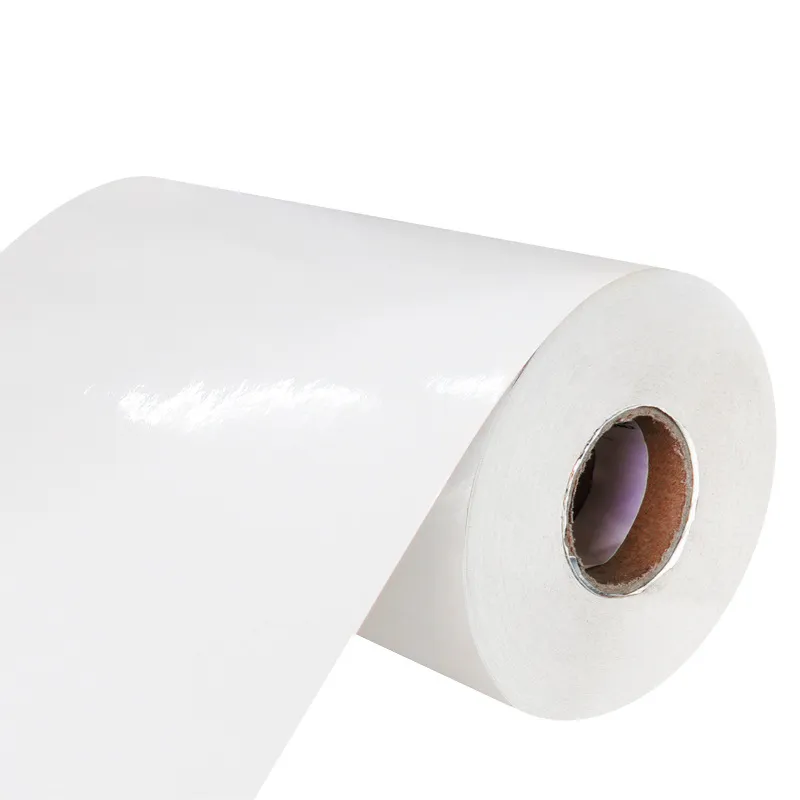

80g Gloss White Coated Paper Self Adhesive Material

80g Gloss White Coated Paper Self Adhesive Material

Barcodelabel,asthenamesuggests,isalabelprintedwithabarcode.Mostapplicationsrequi

Stickers Key Attributes

Goods Name
80g Gloss White Coated Paper Self Adhesive Material

Surface Substrate

Material Name
Single-sided Coated Paper
Color
Gloss White
Thickness
ISO534 70±3 μm
Gram Weight
ISO536 80±2 g/m2
Longitudinal Tensile Strength
≥30 N/2.5CM
Transverse Tensile Strength
≥80 N/2.5CM
Surface Treatment
10 um Nano Transfer Coating

Stickers Adhesive

Adhesive Type
Acrylic
Dry Coating Weight(g/m²)
ISO536 22±2 gsm
Thickness
ISO534 20±2 μm

Release Paper

Material Name
Super Calendered White Glasine
Release Force(g/in)
FTM3 8-10g
Color
White
Gram Weight
ISO536 60±3 g/m2
Thickness
ISO534 55±2 μm

Physical Test Data

Initial Tack
ASTM D3759 ≥8.0N/6.25cm2
Holding Power
FTM8 >4 h Hour/2.5CM
180°Peeling Force On Steel Plate
FTM1 ≥10 N/25mm
180°Release Force
FTM3 ≤150 g/25mm
Shelf Life
It can be stored for one year at a temperature of 23±2 C and relative humidity of 50±5%.
Maximum Sticking Temperature
+40℃
Minimum Sticking Temperature
-10℃
Application Temperature
-10 ~+ 60℃

Package Size

Dimensions Standard Width
Valid Width:1070mm,Slitting Minimum Width:50mm
Dimensions Standard Length
400M 800M 1000M 2000M
Core Size
Diameter 75mm* Width 1070mm
Joint
2000M ≤1

About Stickers Goods Packing

Storage Temperature
-10℃-40℃
Storage
Keep indoor,airiness,avoiding high humidity and direct sunlight,can keep one year in room temperature & humidity.
Logistics
Use wrapping film, corrugated paper to wrap the product, and then use packing rope to secure the card.
Express
Use wrap film and foam wrap, then use corrugated paper to wrap the edge products.

Product Details

Bar code label, as the name suggests, is a label printed with a bar code. Most applications require that the number of each bar code be unique. Considering cost and convenience and other factors, bar code printers are usually used to print bar code labels. Coated paper self-adhesive material is a common material for bar code printers, and its thickness is generally about 80g. It is widely used in supermarkets, inventory management, clothing tags, industrial production lines and other places where the amount of coated paper labels is more. In various brands at home and abroad, the United States Ailey paper, the United States blue Thai paper users reflect the best, especially the United States Ailey copperplate label paper performance is the best, its white super smooth no paint paper, is an excellent basic material for thermal transfer printing.

Copper Printing Paper Adhesive Material Type:

Glossy White Copper Paper Material Matte White Glue Copper Paper Material
Strong Adhesive Copper Paper Material Black Glue Copper Paper Material

Advantage

Fast Speed:Bar code input is 5 times faster than keyboard input and enables "instant data entry".


High Reliability:The error rate of keyboard input data is 1%, the error rate of optical character recognition technology is 1 in 10,000, and the error rate of barcode technology is less than 1 in a million.


Informative:Using the traditional one-dimensional bar code can collect tens of characters of information at a time, two-dimensional bar code can carry thousands of characters of information, and has a certain automatic error correction ability.


Flexible Practical:Bar code identification can be used as a means of identification alone, can also be composed of a system with relevant identification equipment to achieve automatic identification, and can also be connected with other control equipment to achieve automated management.

Applications:
Family information label, office label, bar code printing label, warehousing and logistics label, monochrome and multi-color printing adhesive, carton label, drug label, food label, experimental label, high-quality multi-color label, daily necessities label, product identification label, beautiful children's toys and book label.

Features:
Strong adhesive relay environmental protection water glue system, does not contain alkyl phenols and other high concern materials. It has good absorption and inking properties for all kinds of inks, good die-cutting and waste discharge performance, especially suitable for automatic labeling. Suitable for dry offset plate, gravure plate, relief plate, flexographic and screen printing mode; Suitable for roll type self-adhesive label processing.

Storage Period:
Cool and ventilated at room temperature, avoid sunlight, temperature below 25 ° C, relative humidity of 50±5%, the use of well-sealed and moisture-proof packaging, shelf life of up to 12 months.

Others:
Acrylic water-based pressure sensitive adhesive, suitable for adhesive substrates: various paper, film, steel, glass, glue products, etc. If the customer needs to paste on PP or PE, it should be tried in the corresponding environment first. Not suitable for pasting under -5 ° C.

Instructions For Use:
All descriptions of OwnLikes Limited materials are based on our current knowledge and the results of repeated testing. Customer in the use and production process, there are other external factors, resulting in the impact of the product, the company will not bear the consequences. Therefore, we recommend that customers conduct various tests in the application environment before using. The range of our refund will not exceed the selling price of the corresponding material. Our company has the right to technical improvement and final interpretation.

Product FAQ

Flexographic printing dedicated self-adhesive materials are multi-layer composite label materials designed for flexographic printing processes. Their core features are: withstanding high-speed printing at over 200 meters per minute, matching the rapid drying characteristics of water-based /UV inks, and the roll material is stretchable, ensuring registration accuracy (±0.1mm)
ECO solvent UV printing self-adhesive material is an environmentally friendly label material, specially designed for ECO solvent UV inkjet printers. It combines the low pollution of ECO solvent ink with the immediate drying feature of UV curing technology, allowing for direct printing and curing of graphics and text on the surface material.
HP Indigo sticker material is a specially coated self-adhesive material optimized for HP electronic ink digital printing machines, achieving high-quality printing effects comparable to offset printing through electronic ink technology
Thermal label material is a special type of self-adhesive label that does not require carbon ribbons or ink. Its surface is coated with a thermal sensitive coating (containing dark dyes and color developers), and through the heat effect of the thermal print head, it directly shows color and forms an image.
Thermal transfer label material is a type of label material that is used in conjunction with a thermal transfer printer and a dedicated ribbon (carbon ribbon). During printing, the print head heats up to transfer the ink on the ribbon to the label surface, forming long-lasting and clear graphics and text. The heat-pressed transfer ink achieves high damage resistance and long-term preservation of the label, which is an essential choice in industries such as manufacturing, logistics, and medical care
