This product is made of special modified Polyimide (PI) film substrate and compounded with high-temperature resistant flame-retardant adhesive through a precise coating process. It is specially designed for application scenarios with strict requirements for flame retardancy, temperature resistance and electrical insulation. The product has passed the UL94 VTM-0 flame retardant certification (the highest level of vertical burning test), and features excellent high-temperature resistance (long-term service temperature above 260°C), outstanding dimensional stability and chemical inertness. It is an ideal insulating and protective material for high-end electronics, new energy, aerospace and other fields.

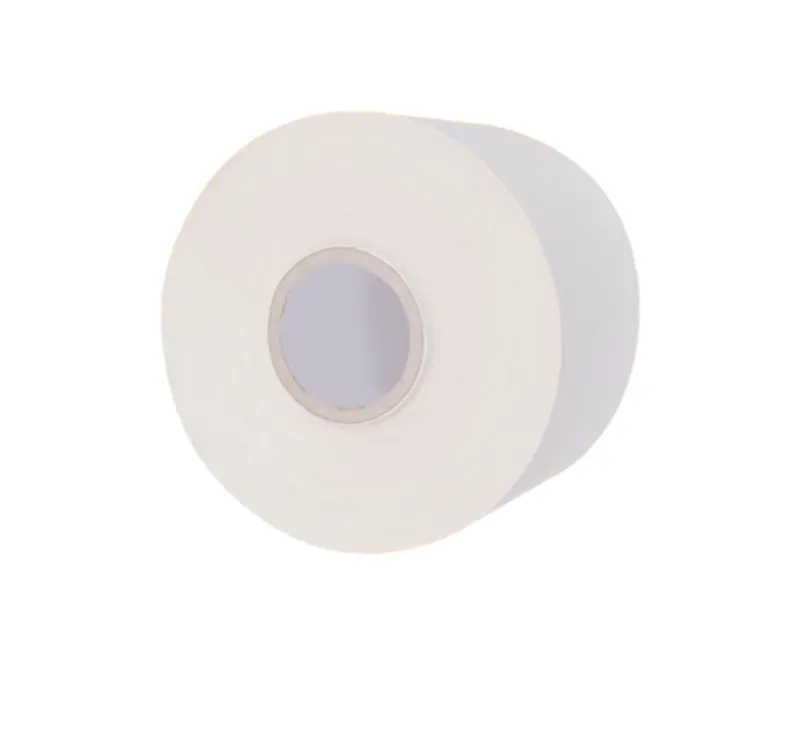

UL94 VTM-0 Flame-retardant Polyimide Sticker Material
Flame Retardant Polyimide Sticker Product Overview
This product is made of special modified Polyimide (PI) film substrate and compounded with high-temperature resistant flame-retardant adhesive through a precise coating process. It is specially designed for application scenarios with strict requirements for flame retardancy, temperature resistance and electrical insulation. The product has passed the UL94 VTM-0 flame retardant certification (the highest level of vertical burning test), and features excellent high-temperature resistance (long-term service temperature above 260°C), outstanding dimensional stability and chemical inertness. It is an ideal insulating and protective material for high-end electronics, new energy, aerospace and other fields.
Flame Retardant Polyimide Sticker Core features and advantages
It complies with the UL94 VTM-0 standard (the highest level of combustion test for vertical thin-walled materials), self-extinguishes when removed from the flame, has no droplets, and effectively inhibits the spread of the flame.
It has passed rigorous multiple vertical burning tests and meets the highest requirements for material safety in aviation, automotive electronics and other fields.
Long-term operating temperature: -269°C to +260°C, short-term tolerance up to 400°C.
It maintains excellent mechanical strength and dimensional stability at high temperatures (with a thermal expansion coefficient as low as 20 ppm/°C), and there is no shrinkage deformation.
Dielectric strength ≥ 6000 V/mm, volume resistivity >10¹⁵ Ω·cm.
It still maintains stable insulation performance in high-temperature, high-humidity and chemical corrosion environments.
It is tear-resistant and puncture-resistant, and has excellent resistance to acids, alkalis, solvents and lubricating oils.
Low smoke and non-toxic, in compliance with the RoHS/REACH environmental protection directives.
It supports various precision processing methods such as die-cutting, punching and slitting, and is suitable for laminating complex structural parts.
It offers multiple thickness options (0.025-0.2mm), adhesive systems (silicone/acrylic), and surface treatment options (matte/glossy).
UL94 VTM-0 Flame Retardant Sticker Products
Flame Retardant Polyimide Sticker Key Parameters
Flame Retardant Polyimide Sticker Typical Application Scenarios
Flame Retardant Polyimide Sticker Certification and Compliance
Why Choose This Flame Retardant Polyimide Sticker?
In modern electronic design that pursues lightweight and high energy density, traditional flame-retardant materials often find it difficult to balance high-temperature stability and mechanical strength in an ultra-thin form. This product achieves a perfect balance between VTM-0 flame retardancy and long-term temperature resistance of 260°C through molecular structure optimization and nanocomposite technology. It can be as thin as 25μm, providing "invisible armor" level protection for your key components and helping the product pass the most stringent safety certification.
Flame Retardant Polyimide Sticker Ordering information
Support customization of rolls/sheets, and provide sample testing and technical consultation.
Customization options: size, thickness, adhesive type, backing release paper, flame retardant reinforcement (VTM-0 to VTM-2).
