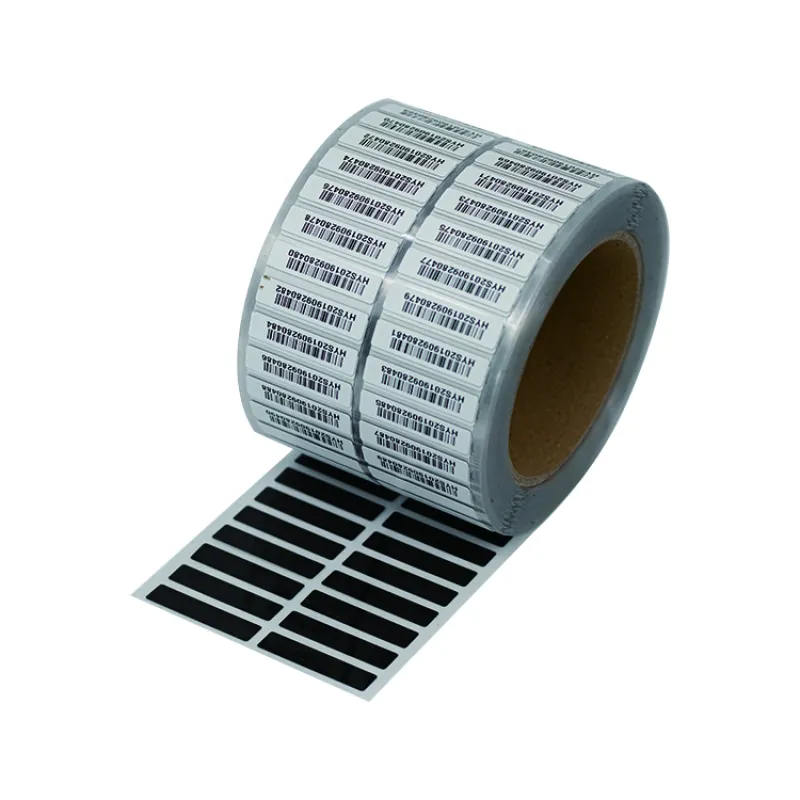

Name: 125um Vulcanized Label Material
Brand: Ownlikes
SKU: 7
Availability: InStock

Stickers Key Attributes

Goods Name

125um Vulcanized Label Material

Surface Substrate

Material Name

PET

Gram Weight

ISO536 125±3 g/m2

Thickness

ISO534 182±3 μm

Color

Matte White

Stickers Adhesive

Adhesive Type

Mixture

Dry Coating Weight(g/m²)

ISO536 50±5 gsm

Thickness

ISO534 20±5 μm

Release Paper

Material Name

Press Finish White Glasin

Gram Weight

ISO536 78±3 g/m2

Thickness

ISO534 65±5 μm

Color

White

Physical Test Data

Transverse Tensile Strength

≥160 N/2.5CM

Longitudinal Tensile Strength

≥110 N/2.5CM

180°Release Force

FTM3 ≤150 g/25mm

180°Peeling Force On Steel Plate

FTM1 ≥3 N/25mm

Initial Tack

ASTM D3759 ≥3# ,Steel Ball#

Release Force(g/in)

FTM3 20-30g

Holding Power

FTM8 ＞24h Hour

Application Temperature

-20 ～+ 180℃

Minimum sticking temperature

10℃

Maximum Sticking Temperature

50℃

Package Size

Dimensions Standard Width

Valid Width：1070mm，Slitting Minimum Width：25mm

Dimensions Standard Length

500M 1000M

Core Size

Diameter 75mm* Width 1070mm

Joint

500M ≤0,1000M≤1

About Stickers Goods Packing

Logistics

Use wrapping film, corrugated paper to wrap the product, and then use packing rope to secure the card.

Express

Use wrap film and foam wrap, then use corrugated paper to wrap the edge products.

Storage

Keep indoor,airiness,avoiding high humidity and direct sunlight,can keep one year in room temperature & humidity.

Other Attributes

Cure Effect

After vulcanization at 175℃ for 25min, the label does not fall off and the bar code is still clear and readable

Print Effect

Bar code scannable

Print Model

Suitable for TTR printing model.

Product Details

OwnLikes is specifically designed for all-steel tire barcode and tire number etching applications, and consists of a permanent rubber-based glue that is resistant to high temperatures and vulcanized with the tire for the entire life cycle of the tire.

Application:

The barcode label is affixed to the tire at the same time as it is produced, and it is kept for the entire life cycle of the tire. quality assessment.

Characteristic:

• Excellent high temperature stability to withstand the heat and pressure of tires treated with high temperature and sulfur (up to 210°C)

• Excellent durability and abrasion resistance

• Excellent chemical resistance: strong waterproof, acid, salt, alkali, most petroleum oil stains, oil and low-fat solvents, the adhesive can penetrate into the concave surface, and it is firmly bonded to the softener that penetrates out of the tire surface. The barcode will not fall off by itself during operation, and the rubber on the tire surface will not be damaged by man-made forcible peeling.

• Excellent barcode/thermal transfer printing effect, combined with Xiyan VR-30 carbon ribbon, to ensure 100% accurate reading and scanning on the high-speed transfer line before and after vulcanization.

• Excellent conformability: Strong flexibility to withstand tire deformation when the tire is removed from the mold.

Thickness	Substrate	Solvent Glue	Release Paper	Application
80um	White PET	White/Black	50um transparent PET	Motorcycle tires/Rubber parts
100um	White PET	Black	50um transparent PET	Motorcycle tires/Rubber parts
125um	White PET	Black, Brown	50um transparent PET	Car tires/Rubber parts
150um	White PET	Black, Brown	50um transparent PET	Car tires/Rubber parts
188um	White PET	Black, Brown	50um transparent PET	Car tires/Rubber parts
250um	White PET	Black, Brown	50um transparent PET	Engineering tires/Rubber parts
300um	White PET	Black, Brown	50um transparent PET	Engineering tires/Rubber parts
350um	White PET	Black, Brown	50um transparent PET	Engineering tires/Rubber parts
500um	White PET	Black, Brown	50um transparent PET	Engineering tires/Rubber parts

Product FAQ

1. How to custom durable label stickers?

It is necessary to understand the specific industry and application, environmental conditions, service life, adhesion surface and other requirements, in order to meet the performance requirements such as temperature resistance, moisture resistance, cold and heat cycle resistance, chemical reagent wiping/soaking resistance, wear resistance, UV aging resistance, salt spray test, and adhesion

2. What is a rubber vulcanized label？

Rubber vulcanization label is a special label specially designed for use in the high-temperature and high-pressure vulcanization process of rubber products. It can withstand the extreme environment of the vulcanization process and firmly adhere to rubber products after vulcanization, providing necessary identification information.

3. What is a heat treatment label?

Heat treatment labels are made of high-temperature resistant materials (such as metals and ceramics) and use special permanent marking methods (such as engraving, etching, and high-temperature ink). After enduring the harsh high-temperature environment of heat treatment, it can still clearly and reliably identify and track the information of parts or batches, ensuring the traceability of the production process and quality control.

4. What is anti static label sticker?

Anti-static stickers are functional stickers that suppress the generation and accumulation of static electricity through special surface treatment (anti-static coating). In application scenarios such as electronic manufacturing, logistics, and medical care that are sensitive to static electricity or pose static electricity risks, protect products, ensure operational safety, and maintain environmental cleanliness.

5. What are outdoor weather-resistant label sticker？

Outdoor weatherproof stickers are special label stickers designed for use in outdoor environments. They can maintain their appearance, integrity and secure adhesion for a long time in harsh outdoor conditions.

6. What is a low energy surface label sticker?

Low energy surface label sticker are suitable for applications where there are high requirements for cleanliness, durability, chemical resistance, or where they need to be adhered to substrates with low surface energy such as PTFE, silicone rubber, HDPE, and PP, which are difficult to bond.

See More FAQs

If you have any questions about our head Stickers material products, please feel free to contact us.
