Stickers Key Attributes
Goods Name

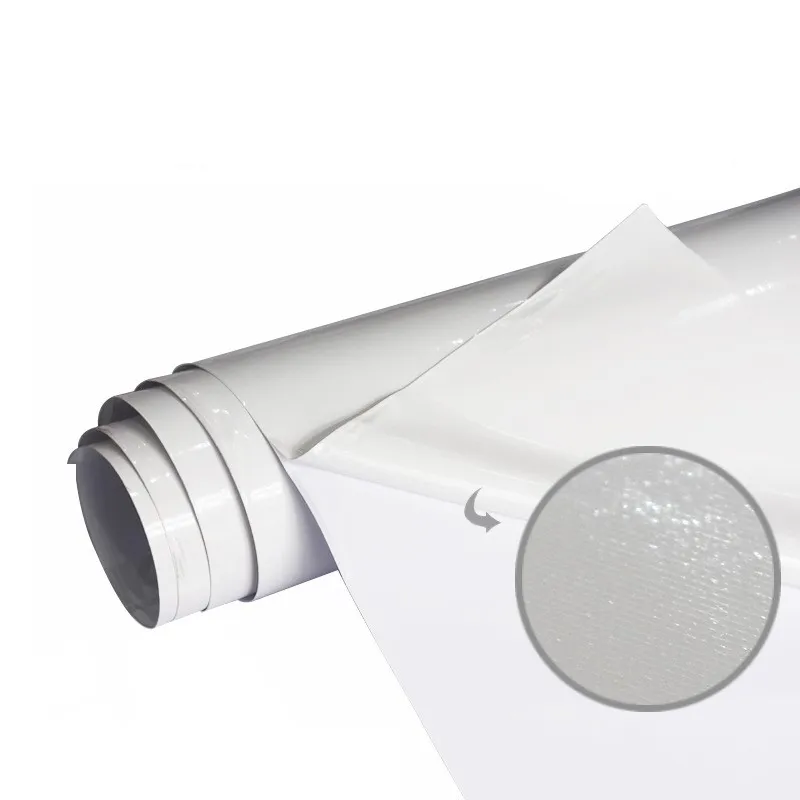

White PVC Self adhesive Material For UV Printed
Surface Substrate
Thickness
ISO534 100±3 μm
Gram Weight
ISO536 120±3 g/m2
Longitudinal Tensile Strength
100 N/MM
Transverse Tensile Strength
80 N/MM
Surface Treatment
10 um Weak Solvent Print Coating
Stickers Adhesive
Dry Coating Weight(g/m²)
ISO536 40±2 gsm
Thickness
ISO534 25-30±2 μm
Release Paper
Material Name
High Quality White Release Paper
Release Force(g/in)
FTM3 10-20g
Gram Weight
ISO536 140±3 g/m2
Thickness
ISO534 135±5 μm
Physical Test Data
Initial Tack
ASTM D3759 ≥7 N/6.25cm2
Holding Power
FTM8 ＞4 24h Hour
180°Release Force
FTM3 ≤1305 g/25mm
Shelf Life
It can be stored for one year at a temperature of 23±2 C and relative humidity of 50±5%.
Maximum Sticking Temperature
+40℃
Minimum Sticking Temperature
+10℃
Application Temperature
-30 ～+ 120℃
Package Size
Dimensions Standard Width
914mm、1070mm、12700mm、1370mm、1520mm
Dimensions Standard Length
50M/1000M
About Stickers Goods Packing
Storage Temperature
-10℃-40℃
Storage
Keep indoor,airiness,avoiding high humidity and direct sunlight,can keep one year in room temperature & humidity.
Logistics
Use wrapping film, corrugated paper to wrap the product, and then use packing rope to secure the card.
Express
Use wrap film and foam wrap, then use corrugated paper to wrap the edge products.
Other Attributes
Suitable ink
Solvent-based ink, weak solvent ink, UV
Product Details
UV printing is a kind of printing process through ultraviolet light drying, curing ink, need to contain photosensitizer ink and UV curing lamp match, UV ink has covered offset printing, screen, inkjet, pad printing and other fields, the traditional printing industry generally refers to UV printing effect process, It is a piece of paper printed with the design you want to put a layer of gloss (gloss, matte, Mosaic crystal, gold onion powder, etc.) on top of it.
Commonly used UV printing adhesive materials
Because the body sticker needs to be used outdoors, it is required to be able to protect against sun and rain, so the material is usually PVC or PET.
- PVC products have chemical stability and strong resistance to oxidants, reducing agents and strong acids. However, it can be corroded by concentrated oxidizing acids such as concentrated sulfuric acid and concentrated nitric acid, and it is not suitable for contact with aromatic hydrocarbons and chlorinated hydrocarbons.
- PVC has the advantages of flame resistance and self-extinguishing, wear resistance, noise and shock absorption, high strength, good electrical insulation, low price and wide source of materials, good airtight performance, etc.
- The disadvantage of PVC is poor thermal stability and easy aging by light, heat and oxygen. The long-term use temperature of most PVC plastic products should not exceed 55 ° C, but the long-term use temperature of special formula PVC plastic can reach 90 ° C.
- PVC has non-flammability, high strength, resistance to climate change and excellent geometric stability, and has strong resistance to oxidants, reducing agents and strong acids. In addition, because of its good flexibility, shrinkage and light permeability, processing and labeling performance is good, chemical corrosion resistance, strong and durable, so suitable for long-term outdoor use.
- PET polyester film is based on polyethylene terephthalate as raw material, PET has excellent physical and mechanical properties in a wide temperature range, long-term use temperature up to 120℃, excellent electrical insulation, even at high temperature and high frequency, its electrical properties are still good, but poor corona resistance, anti-toxic, climate resistance, chemical stability, creep, fatigue resistance, The friction resistance and dimensional stability are very good. Low water absorption, resistance to weak acids and organic solvents, but not heat resistant to water immersion, not alkali resistance.
How to identify vinyl self-adhesive materials for UV printers:
A good film should have good heat insulation. It can be identified by a simple method: the bulb is covered with vinyl adhesive material, and then let the bulb light up, and feel whether it is hot with your hand, and overheat is not a good vinyl adhesive material
Tear the vinyl self-adhesive material by hand, and then recombine it with the base material. If there are many bubbles in the middle, and the vinyl self-adhesive material is very wrinkled, it can be considered that the vinyl self-adhesive material is not a high-quality material. On the contrary, it can be regarded as high-quality materials.
A good vinyl self-adhesive material should have good clarity under the action of light. Regardless of the color of the film, the clarity of the high-quality vinyl self-adhesive material should be above 6 meters at night, and if the vinyl self-adhesive material is hazy, it can be considered inferior material
The color of the picture is maintained for a long time, which is the characteristic of high-quality film. The compatibility of the high-quality film to the ink is very good, the surface does not produce white or white spots, the ink does not spread; In the outdoor use time is also long, the color is unchanged; If there is some external force acting on the surface of the vinyl self-adhesive material, the color will generally not fall off. The inferior film is just the opposite of the above situation.
The high quality vinyl adhesive material can also be felt by hand. The texture is relatively soft, the surface is very smooth and firm, flat. The inferior film is more wrinkled, the surface material is very brittle.
Common Body PVC Sticker Material:
Product FAQ
Flexographic printing dedicated self-adhesive materials are multi-layer composite label materials designed for flexographic printing processes. Their core features are: withstanding high-speed printing at over 200 meters per minute, matching the rapid drying characteristics of water-based /UV inks, and the roll material is stretchable, ensuring registration accuracy (±0.1mm)
ECO solvent UV printing self-adhesive material is an environmentally friendly label material, specially designed for ECO solvent UV inkjet printers. It combines the low pollution of ECO solvent ink with the immediate drying feature of UV curing technology, allowing for direct printing and curing of graphics and text on the surface material.
HP Indigo sticker material is a specially coated self-adhesive material optimized for HP electronic ink digital printing machines, achieving high-quality printing effects comparable to offset printing through electronic ink technology
Thermal label material is a special type of self-adhesive label that does not require carbon ribbons or ink. Its surface is coated with a thermal sensitive coating (containing dark dyes and color developers), and through the heat effect of the thermal print head, it directly shows color and forms an image.
Thermal transfer label material is a type of label material that is used in conjunction with a thermal transfer printer and a dedicated ribbon (carbon ribbon). During printing, the print head heats up to transfer the ink on the ribbon to the label surface, forming long-lasting and clear graphics and text. The heat-pressed transfer ink achieves high damage resistance and long-term preservation of the label, which is an essential choice in industries such as manufacturing, logistics, and medical care
If you have any questions about our head Stickers material products, please feel free to contact us.
