Stickers Material Product

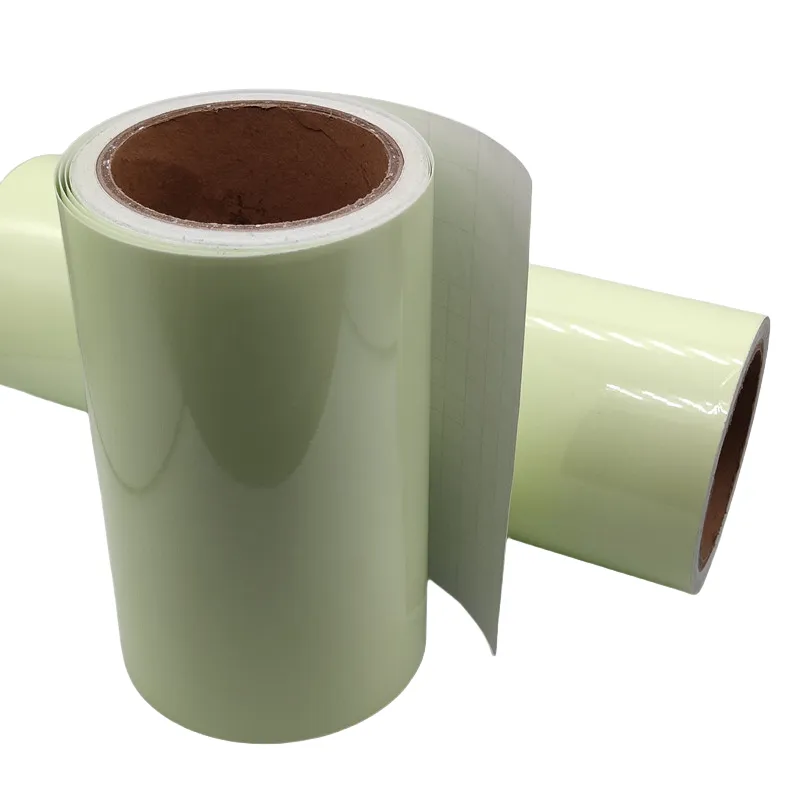

Flame Retardant Luminous Film Tape Material

Flame Retardant Luminous Film Tape Material

In dark environments or emergency situations, clearly visible escape routes and equipment signs are of vital importance. OwnLikes flame-retardant high-brightness luminous tape combines outstanding flame-retardant performance with long-lasting self-luminous function. It is your ideal choice for enhancing the safety of your premises and safeguarding the lives and property of people.

Stickers Key Attributes

Goods Name
Flame Retardant Luminous Film Tape Material

Surface Substrate

Material Name
Polyester
Color
Red / White,Red / White
Thickness
ISO534 100±3 μm
Gram Weight
ISO536 120±3 g/m2
Longitudinal Tensile Strength
≥40 N/2.5CM
Transverse Tensile Strength
≥50 N/2.5CM
Surface Treatment
20 um Nano Transfer Coating

Stickers Adhesive

Adhesive Type
Acrylic
Dry Coating Weight(g/m²)
ISO536 21±5 gsm
Thickness
ISO534 19±5 μm

Release Paper

Material Name
High Quality White Release Paper
Release Force(g/in)
FTM3 10-20g
Color
White
Gram Weight
ISO536 138±3 g/m2
Thickness
ISO534 135±5 μm

Physical Test Data

Initial Tack
ASTM D3759 ≥6 N/6.25cm2
Holding Power
FTM8 >4 24h Hour
180°Release Force
FTM3 ≤7 g/25mm
Shelf Life
It can be stored for one year at a temperature of 23±2 C and relative humidity of 50±5%.
Maximum Sticking Temperature
+40℃
Minimum Sticking Temperature
+10℃
Application Temperature
-10 ~+ 60℃

Package Size

Dimensions Standard Width
Valid Width:1070mm,Slitting Minimum Width:25mm
Dimensions Standard Length
400M 800M 1000M 2000M
Core Size
Diameter 75mm* Width 1070mm
Joint
2000M ≤1

About Stickers Goods Packing

Storage Temperature
-10℃-40℃
Storage
Keep indoor,airiness,avoiding high humidity and direct sunlight,can keep one year in room temperature & humidity.
Logistics
Use wrapping film, corrugated paper to wrap the product, and then use packing rope to secure the card.
Express
Use wrap film and foam wrap, then use corrugated paper to wrap the edge products.

Other Attributes

Longitudinal Tensile Strength
≥55 N/2.5CM
Transverse Tensile Strength
≥130 N/2.5CM

Product Details

Product Introduction: OwnLikes Flame-retardant High-brightness Luminous Tape
Illuminate the path to safety and safeguard the line of defense for life

In dark environments or emergency situations, clearly visible escape routes and equipment signs are of vital importance. OwnLikes flame-retardant high-brightness luminous tape combines outstanding flame-retardant performance with long-lasting self-luminous function. It is your ideal choice for enhancing the safety of your premises and safeguarding the lives and property of people.

Core highlights

  • Outstanding flame retardancy, safety protection

It adopts specially treated flame-retardant base materials and adhesives, and has passed strict fire protection standard tests (such as UL94 V-0 grade or equivalent standards).

When exposed to fire, it can effectively suppress the spread of flames, does not melt droplets, significantly reduces the risk of fire, and buys precious time for personnel evacuation and fire rescue.

  • Long-lasting self-luminous, guiding light

It is equipped with high-quality photoluminescent materials (usually rare earth-doped aluminates), which absorb visible light (sunlight, artificial light) and store energy.

It automatically emits clear and soft green or yellowish green light in a dark environment without power supply and is not afraid of power outages.

It has a high initial brightness and a long afterglow time (usually over 8 to 12 hours), ensuring continuous and reliable visual guidance in emergency situations. Absorbing visible light for 15 minutes is sufficient to meet the requirements of a complete luminescence cycle.

  • Strong and durable, reliable adhesion

The base material is tough and wear-resistant (such as PVC or PEt-based), tear-resistant and scratch-resistant, and can adapt to various complex environments.

High-performance pressure-sensitive adhesive, with strong initial adhesion and excellent holding power, can firmly bond on various common surfaces (such as walls, metals, woods, plastics, etc.) and is not easy to fall off.

It has excellent weather resistance (UV resistance, resistance to high and low temperatures, moisture-proof) and certain chemical corrosion resistance, ensuring long-term usage effect.

  • Easy installation and flexible application

It is as easy to cut, stick and shape as ordinary tape, and its installation and maintenance are extremely simple.

It offers a variety of standard widths (such as 25mm, 50mm) and colors (such as white, yellow, green, etc., with the luminous color usually being green/yellow-green) to meet different signage and decoration requirements.

  • Core values and application scenarios

Enhance the efficiency of emergency escape: In emergency situations such as fires and power outages, clearly mark the escape routes, safety exits, stair steps, handrails, and the locations of fire-fighting equipment (fire extinguishers, alarms) to guide people to evacuate quickly and safely.

Enhance the visibility of equipment and facilities: Mark the edges, protrusions, steps, obstacles, distribution boxes, valve positions, etc. of mechanical equipment. Even in low-light or completely dark environments, it can effectively prevent accidents such as bumps and trips.

Compliance with safety regulations: It is the preferred solution that meets the requirements for emergency evacuation indication and reflective/luminous signs stipulated in building fire protection regulations (such as GB 50016), ship safety regulations, underground space safety standards, and safety regulations of the power industry.

Reduce operational risk costs: Prevent accidents from occurring, minimize losses caused by accidental injuries or equipment damage, and enhance the overall safety management level of the premises.

Luminous film adhesive material products

Typical application industries
Buildings and public places: office buildings, hotels, shopping malls, hospitals, schools, cinemas, underground parking lots, tunnels.

Industrial fields: factory workshops, warehouses, distribution rooms, equipment rooms, petrochemicals, mines.

Transportation: ships (cabins, escape routes), subways, high-speed rail carriages and platforms, aircraft cabins.

Electricity and Energy: Substations, power plants, equipment rooms.

Others: Family emergency reserves, outdoor adventure equipment logos, creative safety decorations.

Why choose OwnLikes flame-retardant luminous tape?
Dual safety guarantee: Flame retardant + luminescent, providing dual protection of physical protection and visual guidance.

Emergency worry-free: Fully passive light emission, no reliance on external power supply, lights up immediately after power failure, no failure in critical moments.

Durable and reliable: The material is stable, with slow decline in luminescence performance and a long service life (usually the luminescence performance can last for several years).

Economical and efficient: Easy to install, extremely low maintenance cost, one-time investment, long-term safety protection.

Widely applicable: Meets the safety identification and emergency indication requirements of multiple industries and scenarios.

Anming ® Flame-retardant High-Brightness Luminous Tape - Not just a piece of tape, but a safety light that guards life in the dark!

Adopt it immediately and add a visible layer of security to your environment!
