Stickers Material Product

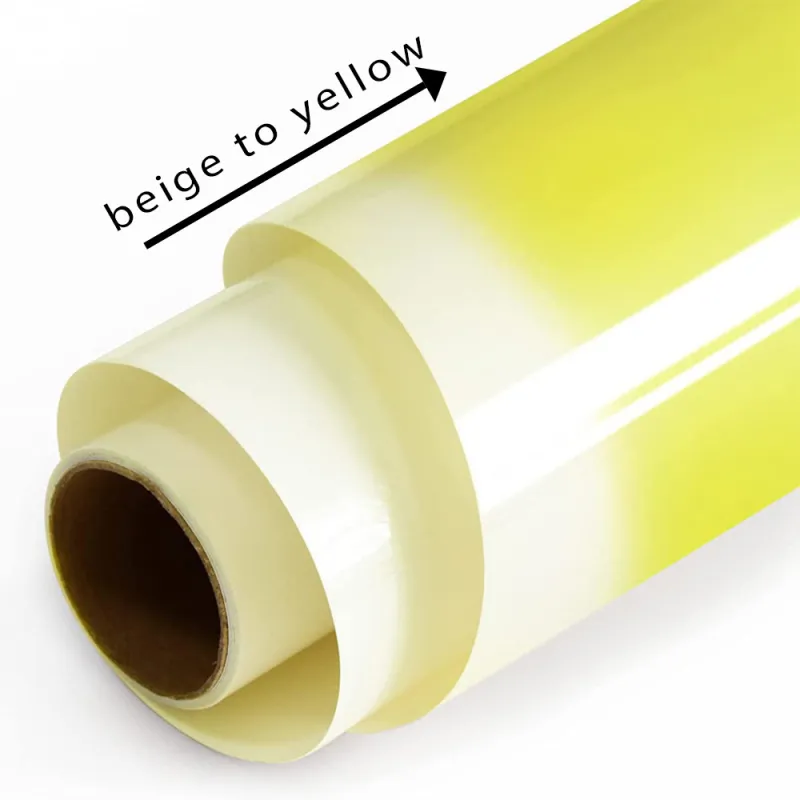

Beige To Yellow Cold Sensitive Color Changing Vinyl Material

Beige To Yellow Cold Sensitive Color Changing Vinyl Material

Cold-color-changing vinyl adhesive material is an innovative functional material. It can change color when the temperature varies, and at the same time, it has excellent bonding performance and the flexibility of vinyl materials. This type of material combines thermochromic technology with the adhesive properties of vinyl, and is widely used in fields such as temperature indication, smart packaging, automotive decoration, and building energy conservation. The following will provide a comprehensive introduction from aspects such as product features, working principles, application scenarios, technical parameters and market prospects.

Stickers Key Attributes

Goods Name
Beige To Yellow Cold Sensitive Color Changing Vinyl Material

Surface Substrate

Material Name
Vinyl
Color
Yellow
Thickness
ISO534 110±3 μm
Gram Weight
ISO536 135±3 g/m2
Longitudinal Tensile Strength
≥40 N/2.5CM
Transverse Tensile Strength
≥50 N/2.5CM

Stickers Adhesive

Adhesive Type
Removable Glue
Dry Coating Weight(g/m²)
ISO536 21±5 gsm
Thickness
ISO534 19±5 μm

Release Paper

Material Name
High Quality White Release Paper
Release Force(g/in)
FTM3 10-20g
Color
White
Gram Weight
ISO536 180±3 g/m2
Thickness
ISO534 150±5 μm

Physical Test Data

Initial Tack
ASTM D3759 ≥6 N/6.25cm2
Holding Power
FTM8 >4 24h Hour
180°Release Force
FTM3 ≤7 g/25mm
Shelf Life
It can be stored for one year at a temperature of 23±2 C and relative humidity of 50±5%.
Maximum Sticking Temperature
+40℃
Minimum Sticking Temperature
+10℃
Application Temperature
-10 ~+ 60℃

Package Size

Cutting Sheet Size
305mm*305mm
Roll Size
305mm*100M
Core Size
Diameter 25mm
Joint
2000M ≤1

About Stickers Goods Packing

Storage Temperature
-10℃-40℃
Storage
Keep indoor,airiness,avoiding high humidity and direct sunlight,can keep one year in room temperature & humidity.
Logistics
Use wrapping film, corrugated paper to wrap the product, and then use packing rope to secure the card.
Express
Use wrap film and foam wrap, then use corrugated paper to wrap the edge products.

Other Attributes

Longitudinal Tensile Strength
≥55 N/2.5CM
Transverse Tensile Strength
≥130 N/2.5CM

Product Details

Product Introduction of Cold Color-changing Vinyl Adhesive Materials
Cold-color-changing vinyl adhesive material is an innovative functional material. It can change color when the temperature varies, and at the same time, it has excellent bonding performance and the flexibility of vinyl materials. This type of material combines thermochromic technology with the adhesive properties of vinyl, and is widely used in fields such as temperature indication, smart packaging, automotive decoration, and building energy conservation. The following will provide a comprehensive introduction from aspects such as product features, working principles, application scenarios, technical parameters and market prospects.

Product Overview Features
Cold-color-changing vinyl adhesive material is a functional composite material developed based on the principle of temperature sensitivity, mainly composed of vinyl substrate, special adhesive layer and temperature-sensitive color-changing microcapsules. This material will trigger a color-changing reaction at a specific low-temperature threshold, changing from transparent or light to dark. When the temperature rises above the threshold, it can reversibly return to its original color. The entire process does not require external energy to drive and is completely dependent on changes in environmental temperature.

Core Features

  • Intelligent temperature change color

It is equipped with thermal sensitive microcapsule pigments. When the ambient temperature reaches the preset threshold (such as below 20°C or in contact with the skin), the surface color of the material will automatically change (such as from dark to light or switching to a contrasting color), and return to the original color when the temperature rises again. The color-changing process is reversible and highly repeatable.

Supports customized color-changing ranges (such as 15°C to 30°C) and color combinations (single color/multi-color gradient).

  • Cool touch

The special surface coating or material formula can absorb heat and bring an instant cool tactile sensation, making it suitable for summer products, sports equipment and other scenarios.

  • Strong adhesion and durability

The high-adhesive back design can be firmly adhered to various substrates such as plastic, metal, glass and wood, and is resistant to peeling and scratching.

Waterproof and UV-stable, it does not fade when used outdoors.

  • Environmental protection and safety

Compliant with RoHS/REACH standards, it has no pungent odor and is suitable for products that come into contact with the human body (such as stationery and clothing accessories).

Temperature Sensitive Color-changing Adhesive Material


Material Composition Structure
Typical cold-color-changing vinyl adhesive materials adopt a five-layer structure design:

Surface protective layer: 12μm thick PET film, scratch-resistant and wear-resistant

Vinyl substrate layer: 80-100μm thick PVC or polyester film, providing flexibility and mechanical strength

Thermochromic layer: A coating containing microencapsulated color-changing dyes, with a thickness of approximately 20-30μm

Adhesive layer: 12μm thick acrylic pressure-sensitive adhesive, viscosity 1000-3000cps, with air release channels

Release liner: 180μm thick PE-coated kraft paper, convenient for storage and construction



Application Scenarios
Creative packaging: Wine bottle labels, beverage packaging (low-temperature color display indicates refrigeration status).

Sports equipment: bicycle stickers, helmets, yoga MATS (temperature variation shows usage intensity, cool touch enhances comfort).

Home decoration: Wall stickers, fridge magnets, DIY handicrafts (change color with the seasons or touch).

Smart labels: Cold chain logistics temperature monitoring, anti-counterfeiting marks (color changes directly reflect temperature changes).

Fashion design: Clothing heat transfer printing, shoe and hat accessories (dynamic colors + cool experience).



Technical Parameters
Substrate thickness: 0.1mm
Adhesion force: ≥3.5N/cm² (measured value)
Temperature resistance range: -20°C to 80°C (no deterioration)
Color change response time: ≤10 seconds (when the temperature difference is ≥5°C)
Service life: More than 5,000 temperature change cycles

Customized Service

  • Customized color-changing characteristics

Color change temperature: Customizable thresholds of 18℃, 22℃, 31℃, 33℃, 45℃, 65℃, etc

Color combination: 15 basic colors + special combinations of colors turning into colors (such as purple to blue, orange to yellow, etc.)

Response speed: Up to 5 seconds (special microcapsule formula)

  • Customized physical properties

Substrate thickness: Adjustable from 80 to 200μm

Adhesive force adjustment: From removable adhesive to permanent strong adhesive series

Special base materials: flame-retardant type, conductive type, etc

  • Customized form and specification

Roll size: Width 1070mm, length 5-30m

Die-cutting shapes: circular, square or complex irregular shapes

Packaging method: Single sheet or roll packaging. Anti-static packaging is optional

Product FAQ

Engraving film is a material that, after being cut by a computer engraving machine, can transfer patterns or characters onto surfaces of the same kind.
Wrap Film is a kind of thin film material used to change the color and texture of the surface of objects. It mainly achieves the appearance color change and decoration of objects such as cars, furniture, electronic products, and architectural glass through the method of pasting and covering. It features convenient construction, rich colors and protection of the base material, and has become a popular personalized modification and decoration material in recent years.
Furniture adhesive materials refer to a type of adhesive products used in the manufacturing, assembly, maintenance or decoration of furniture to achieve the connection, fixation or strengthening of materials. They combine components made of different materials such as wood, metal, plastic, glass and leather through adhesive force, and are one of the key auxiliary materials in furniture production
Glass decorative adhesive materials are a type of composite adhesive materials specifically designed for the decoration, protection or functionalization of glass surfaces. They firmly bond the decorative layer (such as patterns, textures, functional coatings, etc.) to the glass substrate through an adhesive layer, featuring both aesthetic appeal, practicality and ease of construction. It is widely applied in scenarios such as building curtain walls, interior glass partitions, furniture glass, decorative paintings, and glass panels of electronic products
Deerskin flannel adhesive material is a composite functional material that combines the texture of deerskin flannel fabric with an adhesive layer. It features a soft touch, decorative and practical adhesive functions, and is often used in home decoration, gift packaging, electronic protection, handicrafts and other fields
Erasable whiteboard adhesive material is a special functional material used for making or repairing erasable whiteboards (such as office whiteboards and teaching blackboards). Its core features are rewritable property and adhesive fixation ability. It is often used to stick whiteboard panels, repair damaged areas or create temporary writing surfaces.

If you have any questions about our head Stickers material products, please feel free to contact us.
