Stickers Key Attributes
Goods Name
Matte White Anti Static Polyester Label Material
Surface Substrate
Gram Weight
ISO536 67±3 g/m2
Longitudinal Tensile Strength
≥110 N/2.5CM
Transverse Tensile Strength
≥160 N/2.5CM
Surface Treatment
20 um Nano Transfer Coating
Stickers Adhesive
Dry Coating Weight(g/m²)
ISO536 22±5 gsm
Release Paper
Material Name
Press Finish White Glasin
Release Force(g/in)
FTM3 10-20g
Gram Weight
ISO536 78±3 g/m2
Physical Test Data
Initial Tack
ASTM D3759 ≥3# ,Steel Ball#
Holding Power
FTM8 ＞24h Hour
24 hours 90° Peel viscosity -FTM 2(st,st) :
9.0
20 min 90° Peel viscosity -FTM 2(st,st) :
9.0
180°Peeling Force On Steel Plate
FTM1 ≥8 N/25mm
180°Release Force
FTM3 ≤8 g/25mm
Shelf Life
It can be stored for one year at a temperature of 23±2 C and relative humidity of 50±5%.
Maximum Sticking Temperature
+40℃
Minimum Sticking Temperature
-10℃
Application Temperature
-10 ～+ 80℃
Package Size
Dimensions Standard Width
Valid Width：1070mm，Slitting Minimum Width：25mm
Dimensions Standard Length
400M 800M 1000M 2000M
Core Size
Diameter 75mm* Width 1070mm
About Stickers Goods Packing
Storage Temperature
-10℃-40℃
Storage
Keep indoor,airiness,avoiding high humidity and direct sunlight,can keep one year in room temperature & humidity.
Logistics
Use wrapping film, corrugated paper to wrap the product, and then use packing rope to secure the card.
Express
Use wrap film and foam wrap, then use corrugated paper to wrap the edge products.
Other Attributes
Longitudinal Tensile Strength
≥80 N/2.5CM
Transverse Tensile Strength
≥150 N/2.5CM
Product Details

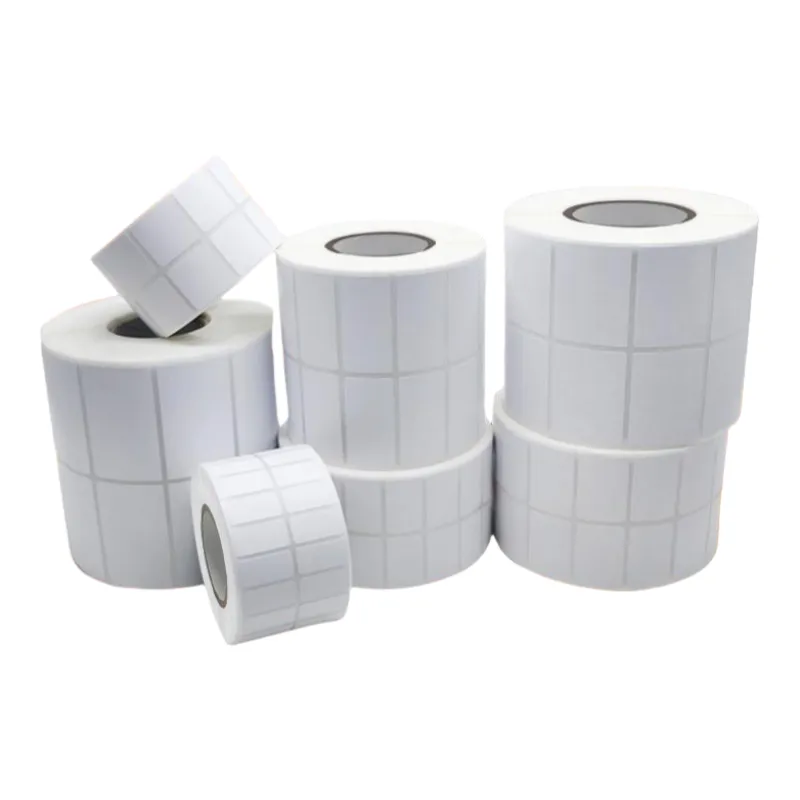

Anti-static polyester label material
Professional protection, precise identification, ensuring the safety of sensitive environments
Product Overview
The anti-static polyester label material is made of high-performance polyester film base material and combined with a special anti-static coating process. It is specially designed for scenarios sensitive to static electricity, such as electronic components, precision instruments, semiconductor equipment, and medical devices. It features excellent anti-static performance, durability and environmental adaptability, effectively preventing damage to sensitive components caused by static electricity accumulation. It is an ideal identification solution for industrial automation, intelligent manufacturing and high-end packaging fields.
Core advantage
- Durable antistatic performance
Through surface anti-static coating or material modification technology, the surface resistance value is stabilized within the range of 10^6 to 10^9Ω, effectively eliminating electrostatic adsorption, preventing dust adhesion and electrostatic discharge (ESD) damage, and meeting electrostatic protection standards such as IEC 61340. Effectively prevent static electricity from attracting dust or discharging from damaging sensitive components.
It is suitable for dust-free workshops, electronic assembly lines and other working environments sensitive to static electricity
Strong weather resistance: resistant to high temperatures (-40℃ to 150℃), UV rays, water and oil, and suitable for harsh environments.
High mechanical strength: tear-resistant, scratch-resistant, and the label remains clear for a long time without lifting the edges.
Chemical resistance: Resistant to erosion by common cleaning agents such as alcohol, solvents, and oils, maintaining clear labels for a long time.
Strong adhesive back adhesive: Made of industrial-grade acrylic glue, it firmly adheres to the surfaces of various materials such as metal, plastic, and glass without lifting edges or falling off.
- Precision print compatibility
The surface is treated with matte or glossy finish, compatible with various printing technologies such as thermal transfer, laser printing, and inkjet coding, ensuring high-resolution presentation of barcodes, text, and patterns, and meeting industrial-grade traceability requirements.
It complies with RoHS and REACH environmental protection standards, is halogen-free and non-toxic volatile, and is suitable for high-demand scenarios such as clean rooms and medical facilities.
Anti Static Sticker Matertial
Typical application scenarios
- Electronic manufacturing: PCB boards, chips, hard disks, display screens and other electronic components electrostatically sensitive area identification;
- Semiconductor industry: Tracking management of wafer boxes, packaging equipment, anti-static turnover boxes;
- Medical devices: anti-static packaging labels for surgical instruments and diagnostic instruments;
- Industrial Automation: Identification of tools and equipment in electrostatic protection zones (EPA);
- Aerospace: Long-term traceable labels for precision instruments and anti-static consumables.
Product parameters
- Material: Anti-static PET film (thickness available from 25μm to 100μm)
- Adhesive: Permanent acrylic adhesive/Removable adhesive (Anti-static back adhesive is optional)
- Color: matte silver, transparent, white, custom color matching
- Specification: Supports roll packaging/flat sheet, and the size can be customized as required
- Certification: Passed the ESD S20.20 and ISO 9001 quality management system certifications
Packaging and Transportation
- Standard roll packaging (outer diameter 200mm, inner diameter 76mm) or flat sheet packaging, custom slitting is supported.
- Moisture-proof and dust-proof packaging to ensure no damage during transportation.
Service commitment
- Free sample testing is provided and customized requests are responded to quickly.
- The professional technical team supports print parameter debugging and scene adaptation suggestions.
- The warranty period is 12 months. Any quality issues will be returned or exchanged unconditionally.
- Consult now to get your customized anti-static label solution!
Product FAQ
It is necessary to understand the specific industry and application, environmental conditions, service life, adhesion surface and other requirements, in order to meet the performance requirements such as temperature resistance, moisture resistance, cold and heat cycle resistance, chemical reagent wiping/soaking resistance, wear resistance, UV aging resistance, salt spray test, and adhesion
Rubber vulcanization label is a special label specially designed for use in the high-temperature and high-pressure vulcanization process of rubber products. It can withstand the extreme environment of the vulcanization process and firmly adhere to rubber products after vulcanization, providing necessary identification information.
Heat treatment labels are made of high-temperature resistant materials (such as metals and ceramics) and use special permanent marking methods (such as engraving, etching, and high-temperature ink). After enduring the harsh high-temperature environment of heat treatment, it can still clearly and reliably identify and track the information of parts or batches, ensuring the traceability of the production process and quality control.
Anti-static stickers are functional stickers that suppress the generation and accumulation of static electricity through special surface treatment (anti-static coating). In application scenarios such as electronic manufacturing, logistics, and medical care that are sensitive to static electricity or pose static electricity risks, protect products, ensure operational safety, and maintain environmental cleanliness.
Outdoor weatherproof stickers are special label stickers designed for use in outdoor environments. They can maintain their appearance, integrity and secure adhesion for a long time in harsh outdoor conditions.
Low energy surface label sticker are suitable for applications where there are high requirements for cleanliness, durability, chemical resistance, or where they need to be adhered to substrates with low surface energy such as PTFE, silicone rubber, HDPE, and PP, which are difficult to bond.
If you have any questions about our head Stickers material products, please feel free to contact us.
