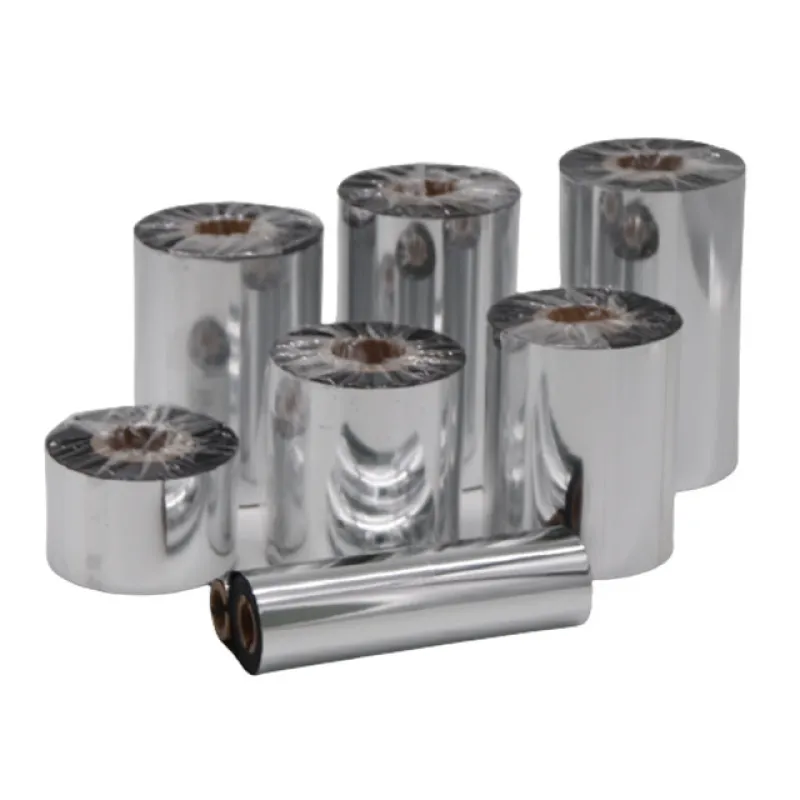

Thermal Transfer Water Washable Resin Ribbon

Thermal Transfer Water Washable Resin Ribbon

The thermal transfer water-washable resin-based color tape is a high-performance transfer material specially designed for high durability identification requirements. It uses high-quality resin-based ink and special coating technology, and is suitable for pattern and text transfer on textiles (especially clothing that needs frequent water washing), industrial labels, sports goods, etc. It has excellent adhesion, water-wash resistance, abrasion resistance and color expression ability, and can meet the long-term usage requirements in harsh environments.

Stickers Key Attributes

Goods Name
Thermal Transfer Water Washable Resin Ribbon

Surface Substrate

Material Name
PET
Color
Black
Thickness
12 μm
Longitudinal Tensile Strength
≥110 N/2.5CM
Transverse Tensile Strength
≥160 N/2.5CM

Package Size

Dimensions Standard Width
Valid Width:30mm,Slitting Width:260mm
Dimensions Standard Length
300m ,450M
Core Size
Diameter 25mm

About Stickers Goods Packing

Inner Packing
PET packing film
Outer Packing
Carton 15 Standard Rolls Per Box
Express
Use wrap film and foam wrap, then use corrugated paper to wrap the edge products.

Product Details

Introduction to Thermal Transfer Washable Resin-Based Color Strips Product Product Overview


The thermal transfer water-washable resin-based color tape is a high-performance transfer material specially designed for high durability identification requirements. It uses high-quality resin-based ink and special coating technology, and is suitable for pattern and text transfer on textiles (especially clothing that needs frequent water washing), industrial labels, sports goods, etc. It has excellent adhesion, water-wash resistance, abrasion resistance and color expression ability, and can meet the long-term usage requirements in harsh environments.

Thermal Transfer Ribbon Product features

  • Excellent water resistance

After being cured at high temperature, the transferred pattern can withstand more than 50 standard machine washes (according to ISO 6330 testing standard), without fading or cracking.
Suitable for color transfer on polyester, blended fabrics and some cotton materials, including both dark and light colors.

  • High adhesion and flexibility

The resin-based ink is closely bonded to the fabric fibers, and it is not likely to come off even after repeated stretching or folding.
Suitable for scenarios where clothing needs to be frequently moved, such as sportswear and workwear.

  • Rich and vibrant colors

The high-density ink layer is applied, supporting high-resolution patterns and complex color reproduction, with an extremely realistic effect.
Environmental protection and safety
Compliant with international environmental protection standards such as OEKO-TEX® Standard 100 and REACH, it contains no harmful solvents and is non-irritating to human skin.

  • Widely compatible

It is compatible with the mainstream thermal transfer printers on the market (such as flat-press and roller press equipment). The recommended transfer temperature is 150-180℃, and the time is 10-20 seconds (the specific parameters need to be adjusted according to the fabric).

Thermal Transfer Ribbon Serie

Thermal Transfer Ribbon Application fields
Fashion industry: Team uniforms, brand T-shirts, swimsuits, sportswear, etc.
Home textile products: throw pillows, curtains, towels, etc. with washable labels.
Industrial labels: Labels such as washing labels and ingredient labels that need to be retained for a long time.
Promotional gifts: Customized water bottles, canvas bags and other durable cultural products.

Thermal Transfer Ribbon Technical Specifications
Base Material:Polyester Film (PET)
Ink Type:Resin-based water-resistant ink
Number of Washes:≥50 times (standard washing at 40℃)
Friction Resistance:≥4 levels (ISO 105-X12 test)
Suitable Fabrics:Cotton, blends, coated cotton, etc.
Storage Conditions:Shaded and dry, avoid direct sunlight

Thermal Transfer Ribbon Usage Suggestions
Before Transfer: Ensure the fabric surface is clean, dry, and free from silicone oil or fabric softeners.
Transfer process: Adjust the pressure and temperature according to the thickness of the fabric to prevent the color tape from becoming brittle due to overheating.
After transfer: It is recommended to avoid intense friction or washing within 24 hours to enhance adhesion.

Why Choose Our Thermal Transfer Water Washable Resin Ribbon?
Customized services: We offer the option for customers to specify the width, length and cutting method.
Technical Support: Offers comprehensive process guidance and resolves transfer-related issues.
Stable supply: Large-scale production ensures the delivery cycle and quality consistency.



Product FAQ

Dry lamination (coating adhesive on the substrate -> drying solvent -> hot-pressing lamination with another layer of material) Wet lamination (coating water-based adhesive on the substrate -> directly laminating with another layer of material -> co-drying) Extrusion lamination/coating (Extruding molten plastic (such as PE), directly coating it onto the substrate and simultaneously laminating it with another layer of material) Hot melt lamination (bonding using hot melt adhesive (solvent-free))
PET (polyester), BOPP (biaxial polypropylene), PE (polyethylene), CPP (cast polypropylene), PA (nylon), PVC, etc.
Prevention (Clean the surface of the quilt to ensure it is free of dust; Uniform pressure application, repair (small bubbles: prick holes with a fine needle and then flatten), lifted edges (local heating followed by heavy pressure application, suitable for hot-pressed film application)
1-3 mils (25-75μm) : Thin type, suitable for documents and posters. 5-10mil (125-250μm) : Universal type, used for certificates and menus. ≥10mil (>250μm) : Hardened protection, suitable for ID cards and work badges.
Protection (anti-scratch, waterproof, anti-stain), enhancement of appearance (shiny, matte effect), reinforcement (increased thickness and hardness).
Laminated film is a kind of thin film material that is combined with paper, printed matter, cards and other substrates through bonding process (heating or normal temperature pressure), and is mainly used for protecting, decorating or strengthening the substrate. Its core functions include water resistance, tear resistance, UV resistance, and enhancing texture (such as gloss), and it is widely used in office work, printing, packaging, documentation and other fields.
