Stickers Material Product

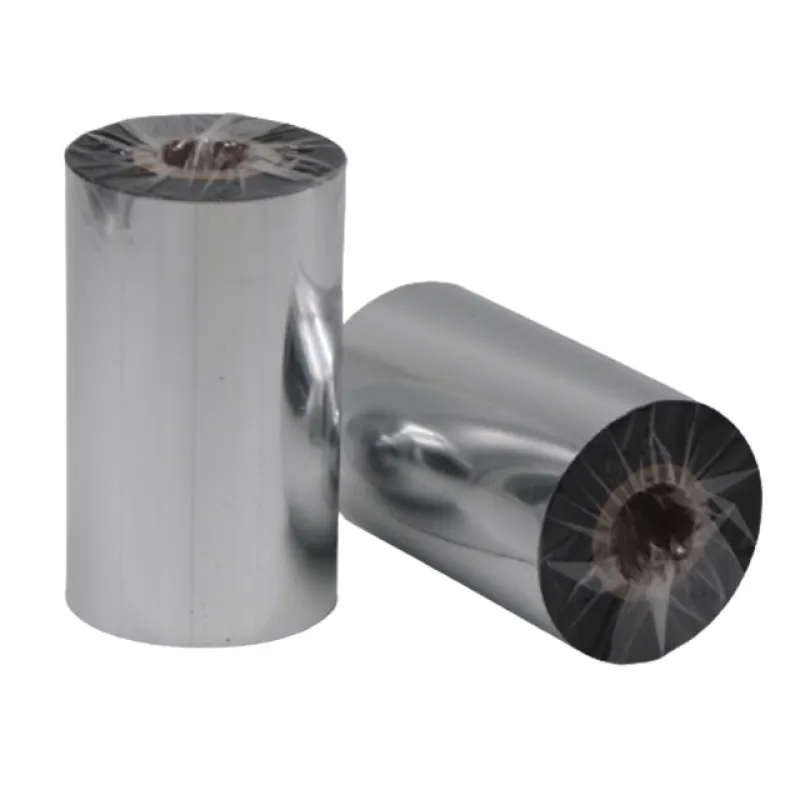

Thermal Transfer High Temperature Resin Ribbon

Thermal Transfer High Temperature Resin Ribbon

The Thermal transfer high-temperature resistant resin color tape is a high-performance transfer material specially designed for demanding industrial environments. It is made of high-quality resin-based ink and high-strength polyester film. This product boasts excellent high-temperature resistance, chemical corrosion resistance, and wear resistance, and is suitable for identification printing in high-temperature environments. It is widely used in durable identification for electronic components, automotive parts, aerospace, medical devices, and other fields.

Stickers Key Attributes

Goods Name
Thermal Transfer High Temperature Resin Ribbon

Surface Substrate

Material Name
PET
Color
Black
Thickness
12 μm
Longitudinal Tensile Strength
≥110 N/2.5CM
Transverse Tensile Strength
≥160 N/2.5CM

Package Size

Dimensions Standard Width
Valid Width:30mm,Slitting Width:260mm
Dimensions Standard Length
300m ,450M
Core Size
Diameter 25mm

About Stickers Goods Packing

Inner Packing
PET packing film
Outer Packing
Carton 15 Standard Rolls Per Box
Express
Use wrap film and foam wrap, then use corrugated paper to wrap the edge products.

Product Details

Introduction to Heat Transfer Resin-Based Color Strips for High Temperature Resistance

Thermal Transfer Ribbon Product Overview
The Thermal transfer high-temperature resistant resin ribbon is a high-performance transfer material specially designed for demanding industrial environments. It is made of high-quality resin-based ink and high-strength polyester film. This product boasts excellent high-temperature resistance, chemical corrosion resistance, and wear resistance, and is suitable for identification printing in high-temperature environments. It is widely used in durable identification for electronic components, automotive parts, aerospace, medical devices, and other fields.

Thermal Transfer Ribbon Features

  • Outstanding high-temperature resistance performance

It can withstand high-temperature environments ranging from 150°C to 300°C for a long time (the specific temperature range can be customized according to customer requirements). The ink does not melt or fade, ensuring that the identification remains clear and durable under high-temperature conditions.

  • High adhesion and wear resistance

Resin-based inks have a strong bond with the substrate (such as metals, ceramics, special plastics, etc.), are resistant to scratching and friction, and are suitable for industrial applications where long-term mechanical wear resistance is required.

  • Resistance to chemical corrosion

Resistant to oil stains, solvents, acids and alkalis, and can maintain the integrity of the marking even when exposed to chemicals or in damp environments.

  • High-precision printing

The surface of the ribbon is uniform and smooth, supporting high-resolution printing ranging from 300dpi to 600dpi. Small text, barcodes and QR codes can all be clearly displayed.

  • Environmental protection and safety

Compliant with international environmental protection standards such as RoHS and REACH, it does not release any harmful substances and is suitable for use in food-grade packaging or for marking medical equipment.

Thermal Transfer Ribbon Serie

Thermal Transfer Ribbon Applicable Scenarios
Electronic industry: PCB boards, high-temperature traceability labels for chips
Automobile manufacturing: Heat-resistant labels for engine components and wiring harnesses
Aerospace: Markings for Components Resistant to Extreme Temperatures
Medical devices: Equipment numbers under high-temperature sterilization conditions

Thermal Transfer Ribbon Technical Specifications
Base Material:High-strength polyester film (thickness selectable from 4.5μm to 6μm)
Ink Type:Temperature-resistant resin base
Applicable Printing Temperature:150°C to 300°C (customizable)
Applicable Printing Machines:Industrial-grade thermal transfer printers (Such as Zebra, Datamax, etc.)
Standard Width:30mm/40mm/50mm/60mm/70mm /80mm/90mm/100mm/110mm(customizable available)

Comparative Advantages Over Traditional Ribbon
Comparison item    Resin-based color band    Ordinary wax-based/mixed-based color band
Temperature resistance    Above 300°C    Usually below 100°C
Service life    Printing frequency increased by more than 50%    Prone to wear and tear, requires frequent replacement
Applicable substrates    Metal, ceramics, etc. materials with poor adhesion    Only for ordinary paper/tapes

Thermal Transfer Ribbon Service Support
Customized services: Offer solutions for ribbons of various widths, temperature resistance levels, and colors.
Technical guidance: Free provision of printer parameter debugging and compatibility suggestions.

Thermal Transfer Ribbon Conclusion
The thermal transfer color tape based on high-temperature resistant resin boasts outstanding stability and adaptability, making it the preferred choice in the industrial-grade identification field. It can provide reliable guarantees even in extreme environments or for long-term traceability requirements. Please contact our technical team to match the optimal solution for you!



Product FAQ

Dry lamination (coating adhesive on the substrate -> drying solvent -> hot-pressing lamination with another layer of material) Wet lamination (coating water-based adhesive on the substrate -> directly laminating with another layer of material -> co-drying) Extrusion lamination/coating (Extruding molten plastic (such as PE), directly coating it onto the substrate and simultaneously laminating it with another layer of material) Hot melt lamination (bonding using hot melt adhesive (solvent-free))
PET (polyester), BOPP (biaxial polypropylene), PE (polyethylene), CPP (cast polypropylene), PA (nylon), PVC, etc.
Prevention (Clean the surface of the quilt to ensure it is free of dust; Uniform pressure application, repair (small bubbles: prick holes with a fine needle and then flatten), lifted edges (local heating followed by heavy pressure application, suitable for hot-pressed film application)
1-3 mils (25-75μm) : Thin type, suitable for documents and posters. 5-10mil (125-250μm) : Universal type, used for certificates and menus. ≥10mil (>250μm) : Hardened protection, suitable for ID cards and work badges.
Protection (anti-scratch, waterproof, anti-stain), enhancement of appearance (shiny, matte effect), reinforcement (increased thickness and hardness).
Laminated film is a kind of thin film material that is combined with paper, printed matter, cards and other substrates through bonding process (heating or normal temperature pressure), and is mainly used for protecting, decorating or strengthening the substrate. Its core functions include water resistance, tear resistance, UV resistance, and enhancing texture (such as gloss), and it is widely used in office work, printing, packaging, documentation and other fields.

If you have any questions about our head Stickers material products, please feel free to contact us.
