Stickers Material Product

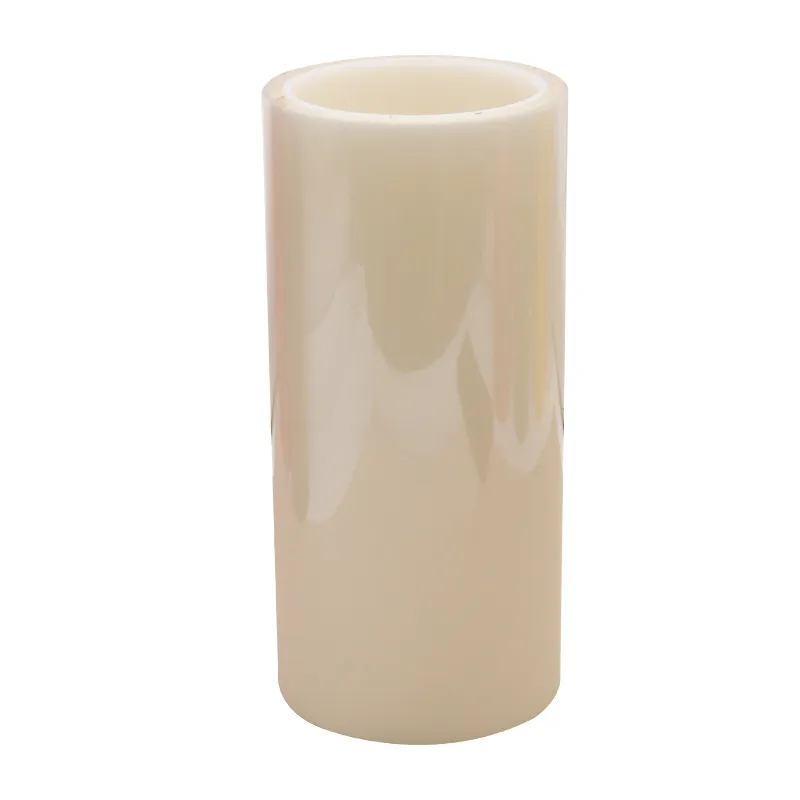

Transparent Polyester Heat Resistant Tape Materal
Transparent Polyester Heat Resistant Tape Materal
Transparent Polyester Heat Resistant Tape Materal
Transparent Polyester Heat Resistant Tape Materal
Transparent Polyester Heat Resistant Tape Materal

Transparent Polyester Heat Resistant Tape Materal

High-temperature Silicone Adhesive Tape is a high-performance industrial tape. It is made from high-quality polyester film as the base material and coated with high-temperature resistant organic silicone pressure-sensitive adhesive. This product possesses excellent temperature resistance, insulation, chemical stability, and adhesive properties, and is widely used in the fixation, insulation, and protection of high-temperature environments in fields such as electronics, electrical appliances, automobiles, and aerospace.

Stickers Key Attributes

Goods Name
Transparent Polyester Heat Resistant Tape Materal

Surface Substrate

Material Name
Polyester
Gram Weight
ISO536 18±3 g/m2
Thickness
ISO534 25±3 μm
Color
Transparent

Stickers Adhesive

Adhesive Type
Acrylic
Dry Coating Weight(g/m²)
ISO536 50±5 gsm
Thickness
ISO534 20±5 μm

Physical Test Data

180°Release Force
FTM3 ≤150 g/25mm
180°Peeling Force On Steel Plate
FTM1 ≥5 N/25mm
20 min 90° Peel Viscosity
FTM 2 6 N/25mm
24 hours 90° Peel viscosity
FTM 2 8 N/25m
Application Temperature
-40 ~+ 300℃
Minimum sticking Temperature
10℃
Maximum Sticking Temperature
+40℃
Release Force(g/in)
FTM3 20-30g
Initial Tack
ASTM D3759 ≥3# ,Steel Ball#
Holding Power
FTM8 >24h Hour
Shelf Life
It can be stored for one year at a temperature of 23±2℃ and relative humidity of 50±5%

Package Size

Dimensions Standard Width
Valid Width:1070mm,Slitting Minimum Width:10mm
Dimensions Standard Length
500M 1000M
Core Size
Diameter 75mm* Width 1070mm
Joint
1000 ≤1

About Stickers Goods Packing

Logistics
Use wrapping film, corrugated paper to wrap the product, and then use packing rope to secure the card.
Express
Use wrap film and foam wrap, then use corrugated paper to wrap the edge products.
Storage
Keep indoor,airiness,avoiding high humidity and direct sunlight,can keep one year in room temperature & humidity.

Product Details

Introduction to PET High-Temperature Silicone Tape Products


Product Overview
High-temperature Silicone Adhesive Tape is a high-performance industrial tape. It is made from high-quality polyester film as the base material and coated with high-temperature resistant organic silicone pressure-sensitive adhesive. This product possesses excellent temperature resistance, insulation, chemical stability, and adhesive properties, and is widely used in the fixation, insulation, and protection of high-temperature environments in fields such as electronics, electrical appliances, automobiles, and aerospace.


Core feature

  • Outstanding high-temperature resistance performance

Long-term temperature resistance range: -40℃ to +150℃. For short periods, it can reach up to 180℃ (such as in welding environments). It does not delaminate or leave residue at high temperatures.
Both the substrate and the adhesive layer have passed UL certification and comply with RoHS/REACH environmental standards.

  • High stickiness and durability

High initial adhesion force, capable of firmly adhering to various surfaces such as metal, glass, ceramics, and plastics.
Anti-aging and anti-ultraviolet, maintaining flexibility and stickiness even after long-term use.

  • Safety insulation protection

The PET substrate possesses excellent electrical insulation properties (with a breakdown voltage of ≥ 5kV), and is suitable for insulation protection of electronic components such as circuit boards and motor coils.

  • Chemical and physical stability

Resistant to acid and alkali, solvent corrosion, moisture-proof and oxidation-proof, suitable for harsh industrial environments.
Low smoke and non-toxic, it does not release harmful substances at high temperatures.


Adhesive Tape Product Series

Typical application scenarios:
Electronic manufacturing: PCB board soldering shielding, electronic component fixation, high-temperature spray painting protection.
Automotive industry: Wiring harness bundling, protection of high-temperature components around the engine.
New energy: Insulation packaging of lithium battery packs, fixation of solar photovoltaic components.
Appliances and industrial equipment: Heat pipe wrapping, sealant pad substitution, oven sealing.


Product Specifications
Base material thickness: 0.05mm - 0.2mm (customizable)
Coating layer thickness: 0.03mm to 0.1mm
Color: Transparent / White / Black (standard)
Width: 5mm - 500mm (Supports customized cutting)
Length: 10m - 50m per roll (or custom-made as per requirements)


Why choose our products?
Customized service: The thickness, stickiness, color and size of the tape can be adjusted according to customer requirements.
Quality Assurance: Full-process ISO 9001 quality management, with SGS test report provided.
Quick Response: We offer sample delivery and technical consultation services, and provide professional answers within 24 hours.

Product FAQ

Engraving film is a material that, after being cut by a computer engraving machine, can transfer patterns or characters onto surfaces of the same kind.
Wrap Film is a kind of thin film material used to change the color and texture of the surface of objects. It mainly achieves the appearance color change and decoration of objects such as cars, furniture, electronic products, and architectural glass through the method of pasting and covering. It features convenient construction, rich colors and protection of the base material, and has become a popular personalized modification and decoration material in recent years.
Furniture adhesive materials refer to a type of adhesive products used in the manufacturing, assembly, maintenance or decoration of furniture to achieve the connection, fixation or strengthening of materials. They combine components made of different materials such as wood, metal, plastic, glass and leather through adhesive force, and are one of the key auxiliary materials in furniture production
Glass decorative adhesive materials are a type of composite adhesive materials specifically designed for the decoration, protection or functionalization of glass surfaces. They firmly bond the decorative layer (such as patterns, textures, functional coatings, etc.) to the glass substrate through an adhesive layer, featuring both aesthetic appeal, practicality and ease of construction. It is widely applied in scenarios such as building curtain walls, interior glass partitions, furniture glass, decorative paintings, and glass panels of electronic products
Deerskin flannel adhesive material is a composite functional material that combines the texture of deerskin flannel fabric with an adhesive layer. It features a soft touch, decorative and practical adhesive functions, and is often used in home decoration, gift packaging, electronic protection, handicrafts and other fields
Erasable whiteboard adhesive material is a special functional material used for making or repairing erasable whiteboards (such as office whiteboards and teaching blackboards). Its core features are rewritable property and adhesive fixation ability. It is often used to stick whiteboard panels, repair damaged areas or create temporary writing surfaces.

If you have any questions about our head Stickers material products, please feel free to contact us.
