Stickers Key Attributes

Goods Name

Teflon Heat Resistant Tape Materal

Surface Substrate

Material Name

Teflon

Gram Weight

ISO536 18±3 g/m2

Thickness

ISO534 25±3 μm

Color

Transparent

Stickers Adhesive

Adhesive Type

Acrylic

Dry Coating Weight(g/m²)

ISO536 50±5 gsm

Thickness

ISO534 20±5 μm

Physical Test Data

180°Release Force

FTM3 ≤150 g/25mm

180°Peeling Force On Steel Plate

FTM1 ≥5 N/25mm

20 min 90° Peel Viscosity

FTM 2 6 N/25mm

24 hours 90° Peel viscosity

FTM 2 8 N/25m

Application Temperature

-40 ～+ 300℃

Minimum sticking Temperature

10℃

Maximum Sticking Temperature

+40℃

Release Force(g/in)

FTM3 20-30g

Initial Tack

ASTM D3759 ≥3# ,Steel Ball#

Holding Power

FTM8 ＞24h Hour

Shelf Life

It can be stored for one year at a temperature of 23±2℃ and relative humidity of 50±5%

Package Size

Dimensions Standard Width

Valid Width：1070mm，Slitting Minimum Width：10mm

Dimensions Standard Length

500M 1000M

Core Size

Diameter 75mm* Width 1070mm

Joint

1000 ≤1

About Stickers Goods Packing

Logistics

Use wrapping film, corrugated paper to wrap the product, and then use packing rope to secure the card.

Express

Use wrap film and foam wrap, then use corrugated paper to wrap the edge products.

Storage

Keep indoor,airiness,avoiding high humidity and direct sunlight,can keep one year in room temperature & humidity.

Product Details

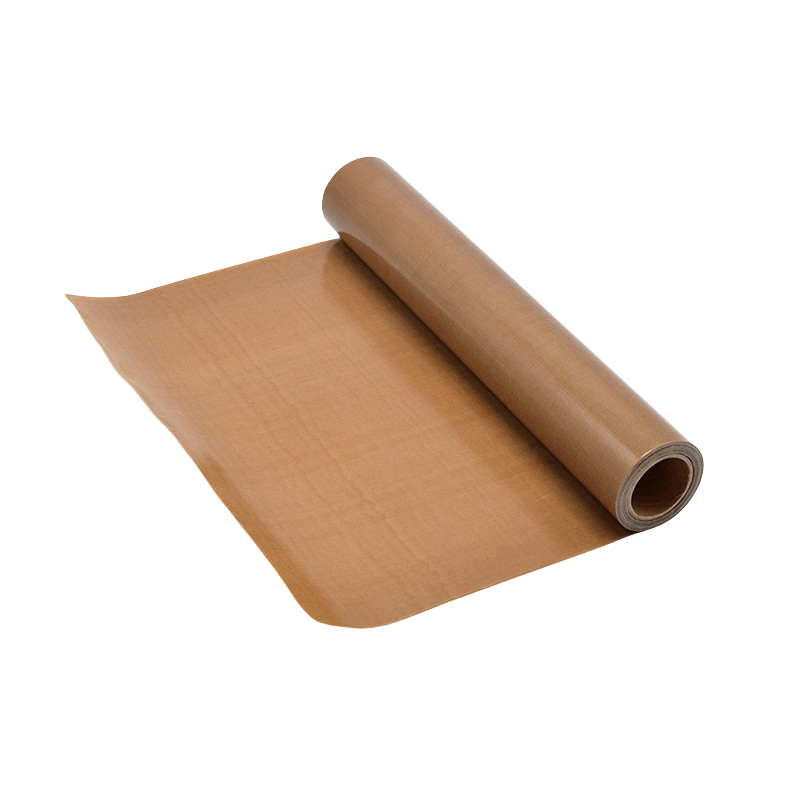

Teflon High-Temperature Adhesive Tape Product Introduction
Product Overview
Teflon high-temperature adhesive tape (PTFE high-temperature adhesive tape) is an industrial adhesive tape made from polytetrafluoroethylene (PTFE) as the base material, processed through special techniques. It is highly resistant to high temperatures, has excellent anti-adhesion and insulation properties, and is widely used in high-temperature working environments in fields such as electronics, packaging, plastics, and chemicals. It is an ideal material for covering, preventing adhesion, and insulation treatment in high-temperature conditions.

Name: Teflon Heat Resistant Tape Materal
Brand: Ownlikes
SKU: 346
Availability: InStock
Rating: 5 (1 reviews)

Heat Resistant Tape Product Characteristics

High Temperature Resistance

Long-term operating temperature range: -70℃ to +260℃, short-term temperature resistance can reach up to 300℃.
It does not melt or deform under high-temperature conditions and maintains stable physical properties.

Outstanding anti-adhesion property

The surface is smooth and does not easily adhere to substances such as colloids and resins, making it easy to clean.
Suitable for anti-sticking treatment for heat sealing machines and packaging machinery.

Excellent insulation performance

High dielectric strength and excellent arc resistance make it suitable for insulation protection of electronic components.

Chemical inertness

Resistant to strong acids, strong alkalis, organic solvents and oils, with strong corrosion resistance.

Mechanical performance is stable.

High strength, low friction coefficient, excellent wear resistance, and reusable.

Electrical insulation property

High dielectric strength, suitable for electrical insulation protection in high-temperature environments.

Adhesive Tape Product Series

Mala Tape Materal

Flame Retardant Acetat Tape Materal

Fiber Tape Materal

Paint Coated High Temperature Tape Materal

Velvet Tape Materal

Copper Tape Materal

Conductive Adhesive Tape Materal

Glass Cloth Tape Materal

Colour Cloth Adhesive Tape Materal

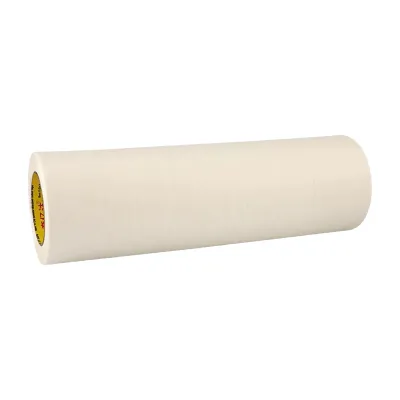

Mylar Heat Resistant Tape Materal

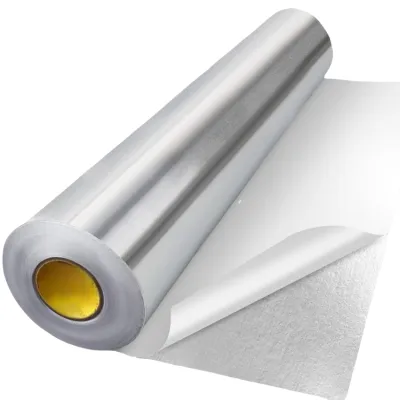

Aluminum Foil Heat Resistant Tape Materal

Transparent Polyester Heat Resistant Tape Materal

Heat Resistant Tape Product Specifications
Base material: Pure PTFE or PTFE-coated glass fiber cloth.
Thickness: 0.05mm - 0.5mm (Can be customized according to your requirements).
Width: 10mm - 1000mm (Supports cutting)

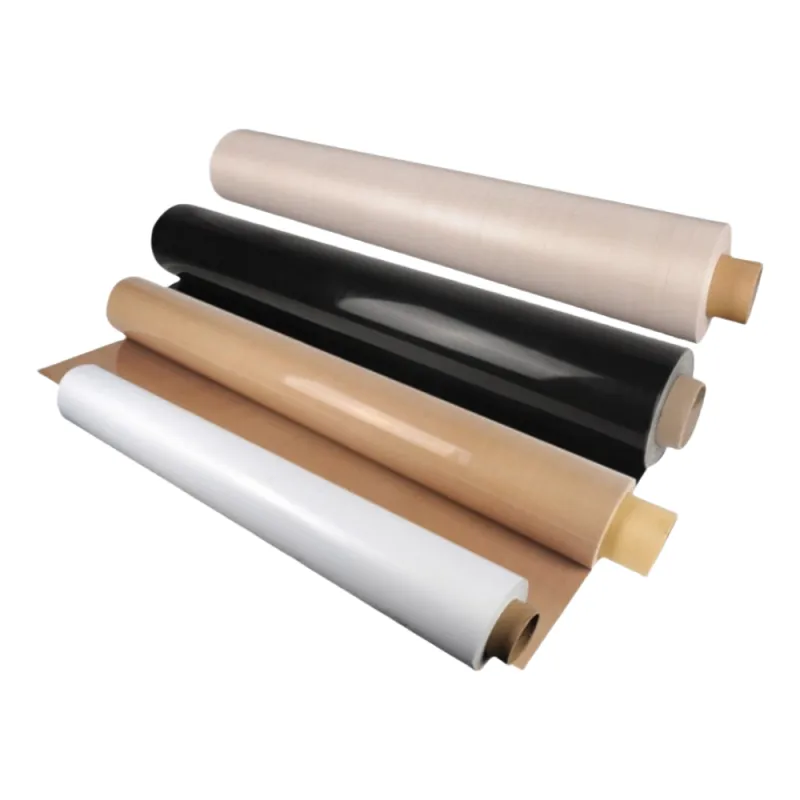

Color: Brown, white, black, etc.
Adhesive: Silicone-based or acrylic-based (high-temperature resistant type).

Heat Resistant Tape Typical application fields:
Electronic industry: SMT reflow soldering shielding, wave soldering protection, circuit board insulation.
Packaging industry: Heat sealing machine conveyor belts, anti-sticking for food packaging machinery.
Plastic industry: Anti-sticking measures for demolding and embossing rollers.
Chemical industry: Pipeline sealing, protection in corrosive environments.
Others: High-demand scenarios such as aerospace and automotive manufacturing.

Heat Resistant Tape Usage Notes
Before pasting, clean the surface to be pasted to ensure there is no oil, dust or other contaminants.
It is recommended to carry out the construction at room temperature. In high-temperature environments, additional pressure should be applied during the pasting process to ensure adhesion.
Avoid rubbing against sharp objects to prevent scratching the surface of the tape.

Quality certification and standards
Compliant with RoHS and REACH environmental protection directives.
Passed UL certification (for some models) and ISO 9001 quality management system.

Why choose our Teflon high-temperature adhesive tape?
Customization service: Supports personalized customization of size, color and adhesive.
High cost-effectiveness: Utilizing high-quality PTFE raw materials, it has a long lifespan and reduces the frequency of replacements.
Technical Support: Offer professional selection suggestions and provide after-sales guarantees.
