Stickers Material Product
Glass Cloth Tape Materal

Glass Cloth Tape Materal

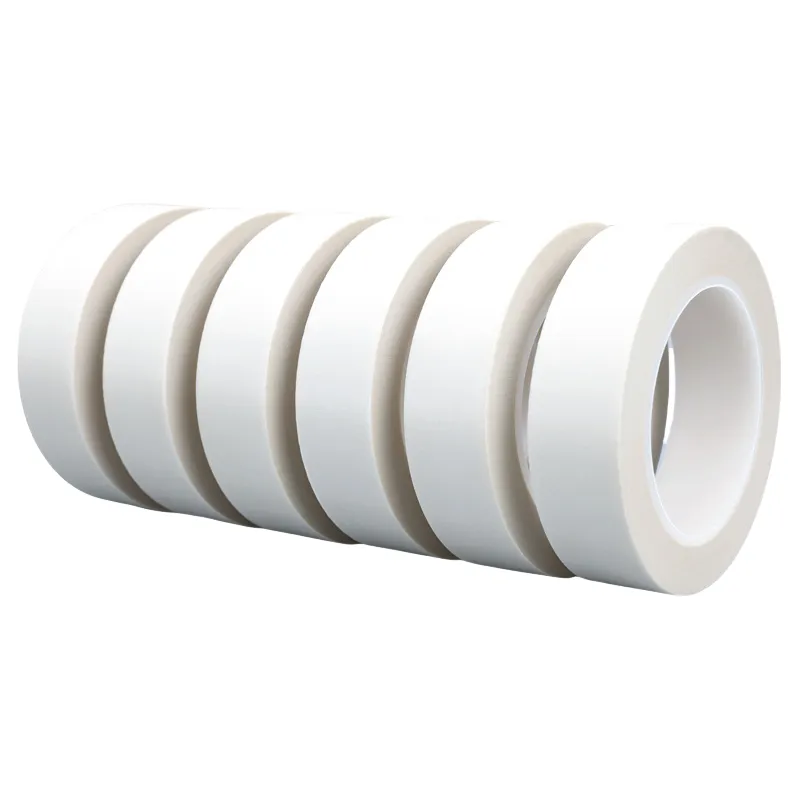

Glass cloth tape is an industrial adhesive tape made from high-quality glass fiber cloth and coated with high-performance pressure-sensitive adhesives (such as acrylic glue, rubber glue, etc.). It has excellent high-temperature resistance, insulation properties, tear resistance and chemical stability, and is widely used in high-strength insulation protection, bundling and fixation in fields such as electronics, electrical engineering, aerospace, and automotive manufacturing.

Stickers Key Attributes

Goods Name
Glass Cloth Tape Materal

Surface Substrate

Material Name
Glass Cloth
Gram Weight
ISO536 18±3 g/m2
Thickness
ISO534 25±3 μm
Color
White

Stickers Adhesive

Adhesive Type
Acrylic
Dry Coating Weight(g/m²)
ISO536 50±5 gsm
Thickness
ISO534 20±5 μm

Physical Test Data

180°Release Force
FTM3 ≤150 g/25mm
180°Peeling Force On Steel Plate
FTM1 ≥5 N/25mm
20 min 90° Peel Viscosity
FTM 2 6 N/25mm
24 hours 90° Peel viscosity
FTM 2 8 N/25m
Application Temperature
-40 ~+ 300℃
Minimum sticking Temperature
10℃
Maximum Sticking Temperature
+40℃
Release Force(g/in)
FTM3 20-30g
Initial Tack
ASTM D3759 ≥3# ,Steel Ball#
Holding Power
FTM8 >24h Hour
Shelf Life
It can be stored for one year at a temperature of 23±2℃ and relative humidity of 50±5%

Package Size

Dimensions Standard Width
Valid Width:1070mm,Slitting Minimum Width:10mm
Dimensions Standard Length
500M 1000M
Core Size
Diameter 75mm* Width 1070mm
Joint
1000 ≤1

About Stickers Goods Packing

Logistics
Use wrapping film, corrugated paper to wrap the product, and then use packing rope to secure the card.
Express
Use wrap film and foam wrap, then use corrugated paper to wrap the edge products.
Storage
Keep indoor,airiness,avoiding high humidity and direct sunlight,can keep one year in room temperature & humidity.

Product Details

Product Overview

Glass cloth tape is an industrial adhesive tape made from high-quality glass fiber cloth and coated with high-performance pressure-sensitive adhesives (such as acrylic glue, rubber glue, etc.). It has excellent high-temperature resistance, insulation properties, tear resistance and chemical stability, and is widely used in high-strength insulation protection, bundling and fixation in fields such as electronics, electrical engineering, aerospace, and automotive manufacturing.

Product Features

  • High-temperature resistance performance

Long-term temperature resistance range: -40℃ to +200℃ (up to 260℃ for short periods), suitable for insulation protection in high-temperature environments.

  • High-strength and tear-resistant

The glass fiber base material endows the tape with excellent mechanical strength, strong tensile resistance, and is not prone to deformation or breakage.

  • Excellent insulation property

High dielectric strength, suitable for insulation wrapping of electrical equipment and circuit boards, effectively preventing short circuits and leakage.
Resistant to chemical corrosion
Resistant to oil, solvents, and acids and alkalis. Suitable for harsh environments such as those found in the chemical and metallurgical industries.

  • Persistent viscosity

The pressure-sensitive adhesive layer has strong adhesion, a balanced initial adhesion and retention adhesion, and is not prone to detachment.

  • Good flexibility

Easy to wind and fit onto complex surfaces, with convenient construction.

Adhesive Tape Product Series

Technical Specifications

Base material thickness    0.10mm - 0.25mm (customizable)
Adhesive type    Acrylic adhesive/Rubber adhesive
Tensile strength    ≥ 50N/10mm
Break elongation    ≤ 5%
Dielectric strength    ≥ 5kV/mm
Color    White, Beige, Black (optional)



Typical Application Scenarios

Electronics and electrical appliances: Insulation wrapping for transformers, motors, and cables.
Aerospace: Protection and fixation of high-temperature areas.
Automotive industry: Wiring harness bundling, exhaust pipe insulation layer fixation.
Construction field: Pipe sealing, steel structure joint protection.
DIY repair: Temporary fixes for household high-temperature appliances (such as ovens, soldering irons).

Instruction Manual

Clean the adhered surface to ensure there is no oil, dirt or dust.
Cut the length according to the requirements, and press slightly during application to ensure the adhesion.
For a higher level of strength, multiple layers can be overlapped and wound together.



Packaging Specifications

Standard width: 10mm/15mm/20mm/50mm (customization available)
Roll length: 10m / 20m / 33m / 50m
Packaging method: Packed in cardboard boxes or plastic films. The quantity per box is adjusted according to the width.



Quality Certification

Passed environmental protection standards such as UL certification, RoHS, and REACH.
Compliant with the ISO 9001 quality management system.



Why choose our glass cloth tape?

It is made from high-quality raw materials and has stable and reliable performance.
Support personalized customization (color, size, adhesive type).
Provide professional technical support and after-sales services.
