Stickers Key Attributes
Goods Name
Velvet Tape Materal
Surface Substrate
Gram Weight
ISO536 18±3 g/m2
Stickers Adhesive
Dry Coating Weight(g/m²)
ISO536 50±5 gsm
Physical Test Data
180°Release Force
FTM3 ≤150 g/25mm
180°Peeling Force On Steel Plate
FTM1 ≥5 N/25mm
20 min 90° Peel Viscosity
FTM 2 6 N/25mm
24 hours 90° Peel viscosity
FTM 2 8 N/25m
Application Temperature
-40 ～+ 300℃
Minimum sticking Temperature
10℃
Maximum Sticking Temperature
+40℃
Release Force(g/in)
FTM3 20-30g
Initial Tack
ASTM D3759 ≥3# ,Steel Ball#
Holding Power
FTM8 ＞24h Hour
Shelf Life
It can be stored for one year at a temperature of 23±2℃ and relative humidity of 50±5%
Package Size
Dimensions Standard Width
Valid Width：1070mm，Slitting Minimum Width：10mm
Dimensions Standard Length
500M 1000M
Core Size
Diameter 75mm* Width 1070mm
About Stickers Goods Packing
Logistics
Use wrapping film, corrugated paper to wrap the product, and then use packing rope to secure the card.
Express
Use wrap film and foam wrap, then use corrugated paper to wrap the edge products.
Storage
Keep indoor,airiness,avoiding high humidity and direct sunlight,can keep one year in room temperature & humidity.
Product Details

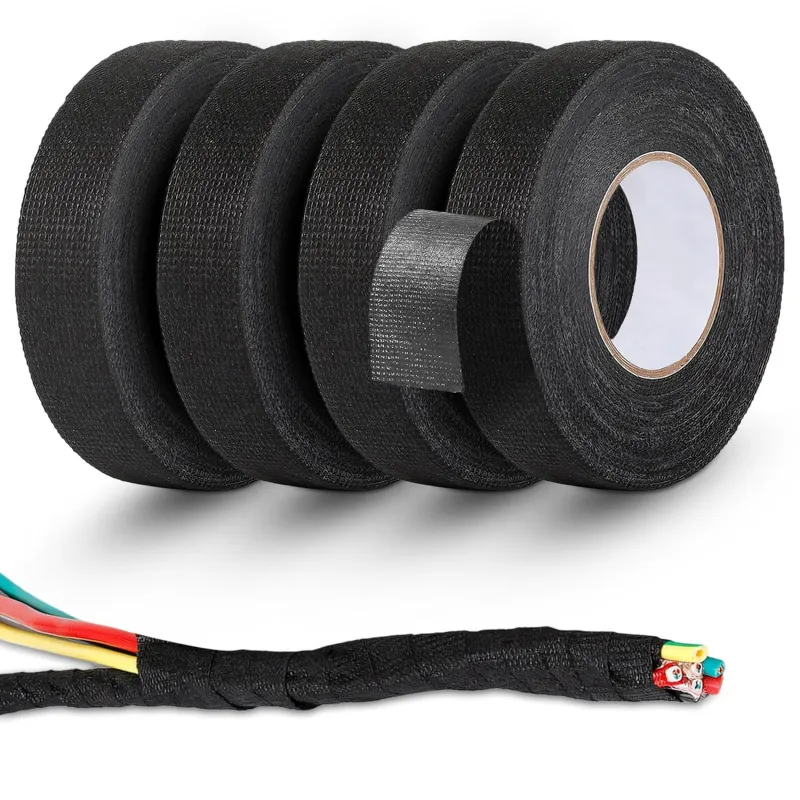

Car audio cable rubber fabric tape - Professional-grade wiring protection solution
Product Overview
The automotive audio cable fleece tape is a high-performance winding material specially designed for protecting automotive audio wiring and electronic cables. It combines the softness of fleece, the adhesion of tape, and the wear-resistant and high-temperature resistance properties, effectively reducing cable friction noise, preventing electromagnetic interference (EMI), and enhancing the tidiness and durability of the interior wiring.
Core advantage
-
Noise reduction and anti-jamming
The surface of the velvet fabric is soft and smooth, preventing the cables from colliding with the vehicle body or other components, thereby reducing noise and enhancing the driving and riding comfort.
-
Excellent wear resistance and temperature resistance
Using high-density synthetic fiber fleece fabric combined with a heat-resistant adhesive layer, it can adapt to working environments ranging from -40℃ to 120℃. It will not fall off or deform even after long-term use.
-
Electromagnetic Interference (EMI) prevention
Some models are equipped with metal shielding layers (such as aluminum foil composite), which effectively prevent signal interference and ensure the quality of audio transmission.
Self-adhesive design, allowing for easy winding and fixation without the need for additional tools; the length can be freely trimmed to meet different wire diameter requirements.
-
Environmental protection and flame retardancy
Compliant with environmental protection standards for the automotive industry (such as RoHS), with a flame retardant rating of UL94 V0, and safe and reliable.
Adhesive Tape Product Series
Typical application scenarios
Car audio system wiring (power amplifier, speaker, main unit connection cables)
Protection of weak electrical cables such as in-vehicle navigation systems and reversing camera systems
Outer protection for high-voltage wiring harness of new energy vehicles (specific high-voltage-resistant models are required)
Reconditioning of vehicle wiring harnesses for organization and beautification
Technical Specifications
Material Polyester fleece + modified acrylic adhesive
Width 10mm/15mm/20mm (customizable)
Length 10m/15m/20m (customizable)
Temperature Resistance Range -40℃ ~ 120℃
Peel Strength ≥1.5N/cm
Color Black/Grey (other colors can be customized)
Why choose our rubberized fabric tape?
Automotive expertise: 10 years of in-depth research on automotive wiring protection materials, suitable for the cable layout of mainstream vehicle models.
Customized service: Supports personalized requirements such as color, width, shielding layer, etc.
Quality Certification: Certified to ISO 9001, TS16949 and other standards.

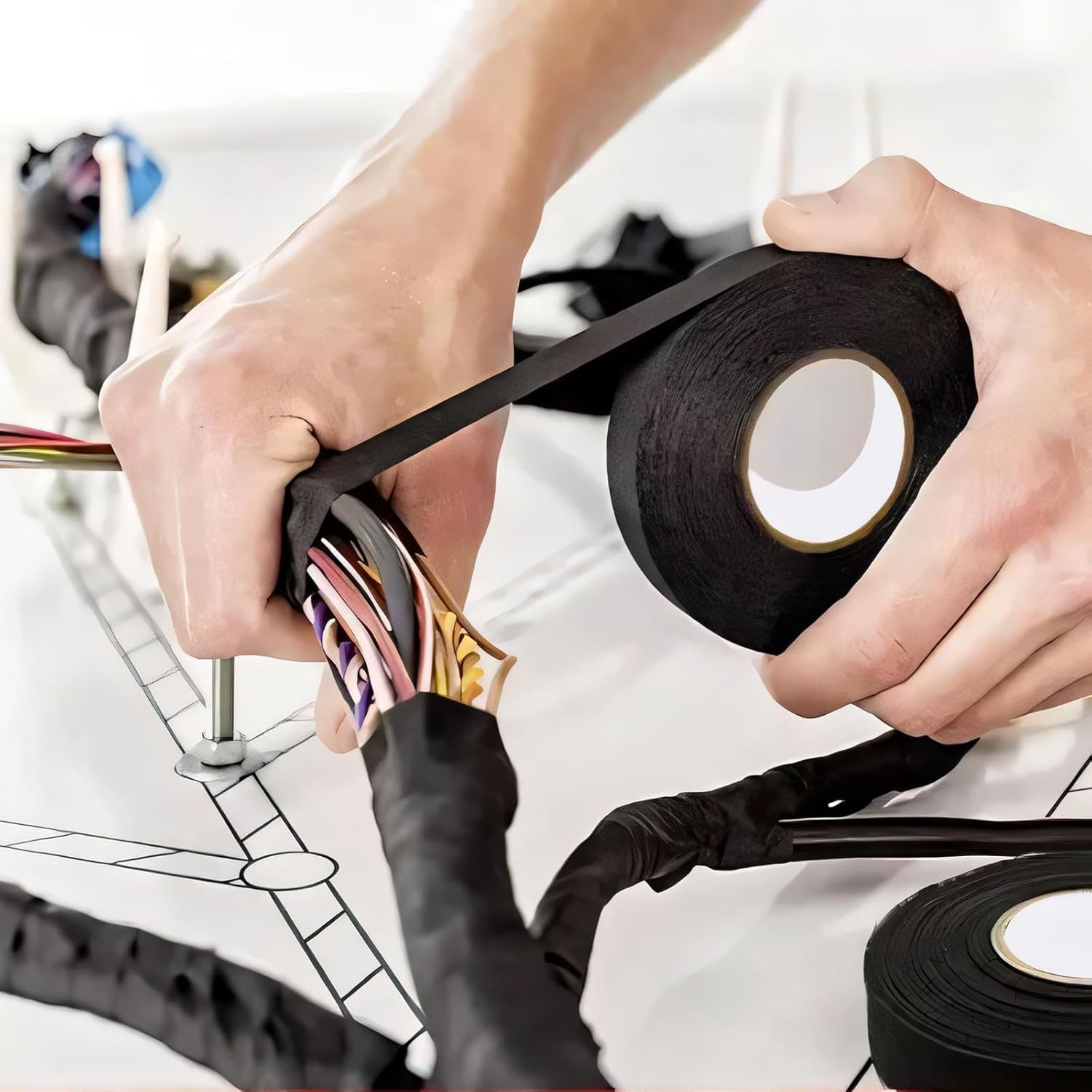

Usage Tips
Clean the oil stains on the cable surface before winding it. Ensure the stickiness lasts for a long time.
When winding, maintain a 50% overlap rate to achieve the best protection and shielding effect.
Construction in high-temperature environments can slightly heat the adhesive surface to enhance its adhesion.
Product FAQ
Engraving film is a material that, after being cut by a computer engraving machine, can transfer patterns or characters onto surfaces of the same kind.
Wrap Film is a kind of thin film material used to change the color and texture of the surface of objects. It mainly achieves the appearance color change and decoration of objects such as cars, furniture, electronic products, and architectural glass through the method of pasting and covering. It features convenient construction, rich colors and protection of the base material, and has become a popular personalized modification and decoration material in recent years.
Furniture adhesive materials refer to a type of adhesive products used in the manufacturing, assembly, maintenance or decoration of furniture to achieve the connection, fixation or strengthening of materials. They combine components made of different materials such as wood, metal, plastic, glass and leather through adhesive force, and are one of the key auxiliary materials in furniture production
Glass decorative adhesive materials are a type of composite adhesive materials specifically designed for the decoration, protection or functionalization of glass surfaces. They firmly bond the decorative layer (such as patterns, textures, functional coatings, etc.) to the glass substrate through an adhesive layer, featuring both aesthetic appeal, practicality and ease of construction. It is widely applied in scenarios such as building curtain walls, interior glass partitions, furniture glass, decorative paintings, and glass panels of electronic products
Deerskin flannel adhesive material is a composite functional material that combines the texture of deerskin flannel fabric with an adhesive layer. It features a soft touch, decorative and practical adhesive functions, and is often used in home decoration, gift packaging, electronic protection, handicrafts and other fields
Erasable whiteboard adhesive material is a special functional material used for making or repairing erasable whiteboards (such as office whiteboards and teaching blackboards). Its core features are rewritable property and adhesive fixation ability. It is often used to stick whiteboard panels, repair damaged areas or create temporary writing surfaces.
If you have any questions about our head Stickers material products, please feel free to contact us.
